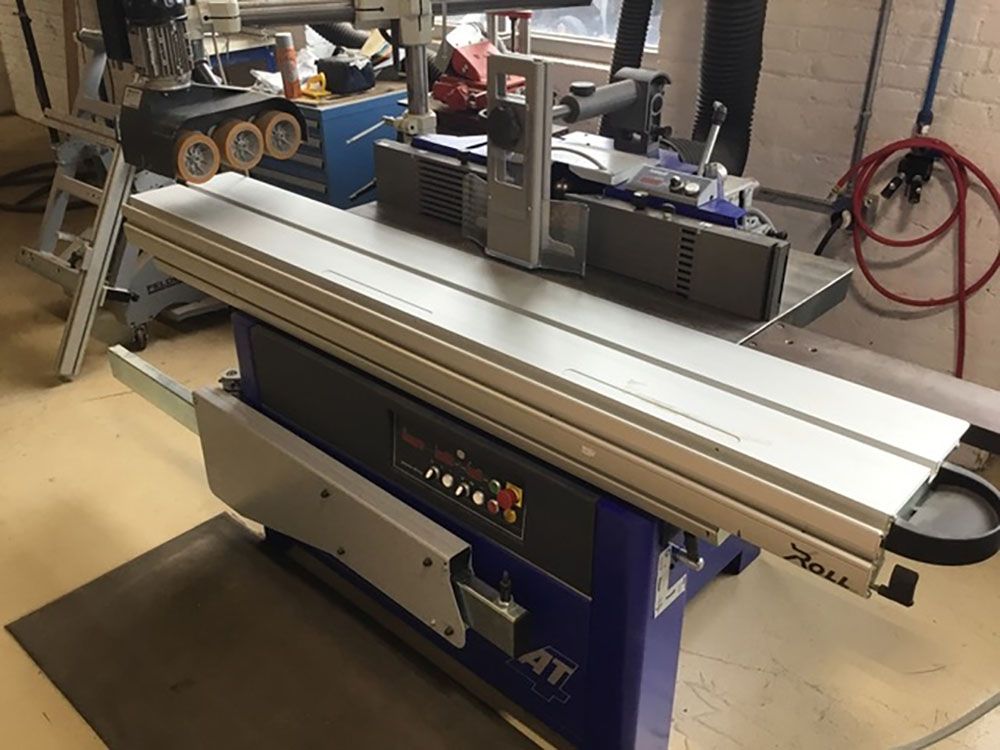

Felder Format Profil 45 Z

Shaper
13.5 HP, 3PH Cutterhead Motor
Spindle unit electrical height and Angle adjustment with LED display for the height and angle (Power Drive F2),
Digital speed display
1 1/4",shaft length clamping height/useable length above table (90°)
150/157/140 mm, 3500/4500/6000/8000/10.000 rpm Imperial scale display readout
Spindle moulder fence "250" for profil45 max. tool diameter 250mm, stepless fine adjustment on the outfeed side +35/-10mm with digital readout.
Complete fence with electronic adjustment and electronic readout and fine adjustment. Fence can be tilted to clear surface and for the tool change.
Sliding table, Table length 2050 mm Anodised 10 years Felder warranty on the .X-Roll. sliding table guiding system!
Inch scales for crosscut fence 2600 Crosscut fence 2600 mm (102") with mounting set for for outrigger 1300/1500
Outrigger 1300 mm for the profile cutter supporting surface 950 x 640 mm
CENTREX spindle moulder guard External spindle lock for simple tool change
Aigner Shaper fence "INTEGRAL-A", 500mm for spindle moulder fence "250"
Spindle Moulder profil45Z table size 1200x 860mm with integrated tenoning table
Outrigger transport cart
