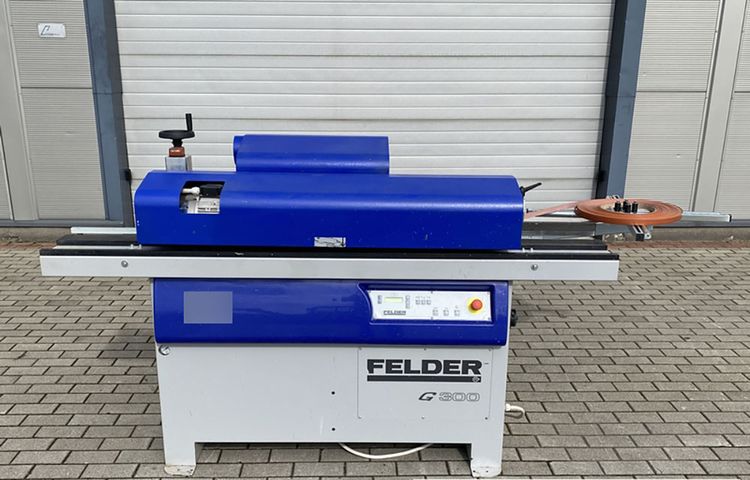

Felder G 300

Straight edge bander
edge thickness min. - max. 0.4 - 3.0 mm
element thickness min. - max. 10 – 45 mm
Saw trimming unit
Excess edge trimming unit flush or with profile
Used for removing excess edge from the top and bottom edges of the workpiece
Flush trimming
Edge trimming at an angle or round in a single operation
Excess edge trimming Ø 70 mm, Z 6, a=15°, R=2 mm
INSPECTIONS PERFORMED BY FELDER SERVICE SHAPE-FREE DIMENSIONS
ACCURACY AND VERY EASY TO USE
Table dimensions 2000 x 300 mm
Air consumption 6 bar
Power supply 400 V
Power 3.2 W
Glue application roller and glue pot
Glue application roller ensures even application to the workpiece edge
Feed 9 m/min
Dimensions (L/W/H): 2000 x 1260 x 650 mm
Weight: 360 kg net

MACHINE ADVANTAGES:
– Fine adjustment options.
– Ability to precisely adjust boards between 10 and 45 mm zoom.
– Flush milling.
– Milling of edge bands at an angle or in a round shape in a single operation.
– Feeder plate.
– Feeder plate for rolls with unglued edges.
– Glue application roller and glue container.
– Grooved glue application roller ensures even glue application to the edge of the workpiece.
– Pressure unit.
– Pressure rollers secure the edge band to the workpiece, ensuring a perfect bond.
– Saw-type trimming unit.
– Highly precise trimming unit guidance guarantees perfect cutting results.
– A unit that trims excess edgeband flush or flush with the profile.
– Used to remove excess edgebanding from the top and bottom edges of the form.
– Perfect finishing when using ABS and PVC edgebands.
