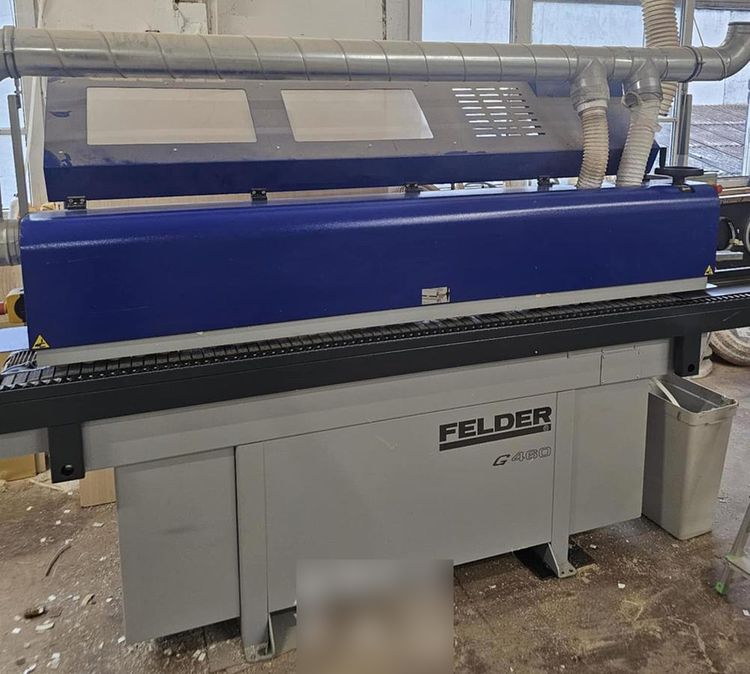

Felder G460

Edgebander
Operating panel with LCD display and keypad
Premilling unit with 2 diamond spindles rotating in opposite direction
Manual unit adjustment
Tape thickness 0.4 - 3.0 mm
Workpiece height 8 - 45 mm
9 m/min feed speed
2 available slots for additional finishing units

Premilling unit (centrally controlled - can be disengaged)
Adjustable cutting depth 0-2 mm
Tool diameter 60 mm
Max. processing height 45 mm
No. of asymmetrical diamond tipped V-cut milling units 2+2
Rqm 12000
Power (kW) of each motor 1.1
Working dimensions:
Edge thickness min.-max. 0.4-3.0 mm
Work piece thickness min.-max. 8-45 mm
Min. workpiece width 70 mm
Min workpiece length 210 mm

Units:
Coiled edge band feed suport plate Ø 800 mm, for PVC/ABS
Edge feeding is automatic for roller materials with a thickness of 0.4-3 mm, strip glue in separate feed
Guillotine shears for cutting coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS
Glue unit for glue granulate from the teflon coated glue pot
Spring loaded pressure unit with 1 pressure roller and 1 free moving roller
12000 rpm 0.27 kW end trimming unit with Ø 100 mm 24 tooth HW-Saw blades
12000 rpm 0.37 kW Flush trimming radius trimming and bevel trimming
Tooling for 2 mm radius
General:

Extraction connector Ø 120+2 x 80 mm
Machine Weight 560 kg
Machine Length 3200 mm x Width 1100 mm x Higth 1550 mm
