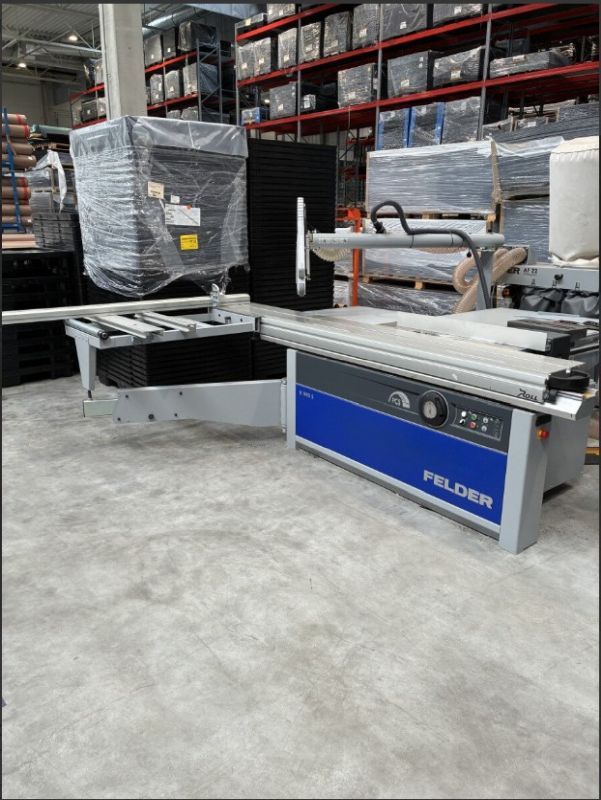

Felder K 945S

Circular saw
Technical specifications :
- Manual saw blade angle adjustment with angle indicator and handwheel
- Rip fence with round guide rail, D = 50 mm
- Rip fence 2600 mm with mounting system for crosscut table 1300/1500
- Machine stand for K 945 S, cast iron saw blade table, including operating tools
- Main saw motor 5.5 kW (7.5 HP), 3x400 V
- PCS (Preventive Contact System) safety system detects the approach of body parts
- Tiltable saw unit 90°-45°
- Saw blade diameter range: 250-450 mm
- Maximum cutting height: 155 mm
- Electric height adjustment
- Maximum cutting width: 1250 mm
- Guard hood for 1250 mm cutting width with dust extraction connection (100 mm)
- Sliding table, cutting length 2800 mm, anodized aluminum
- Transport packaging for sliding table
- Standard pallet 2100 x 1500 x 1500 mm
- Extension table for cutting lengths 2500-3200 mm
- Support surface: 1150 x 640 mm
- Crosscut fence 3200 mm with 2 folding stops
- 3 speed settings: 3500/4500/5500 rpm
- Antistatic belt for PCS system

AF 22 Mobile Dust Collector
- Power: 3.0 kW
- 3 x 400 V, 50/60 Hz
- Standard dust filter
- Connection ports: 120 mm and 80 mm
