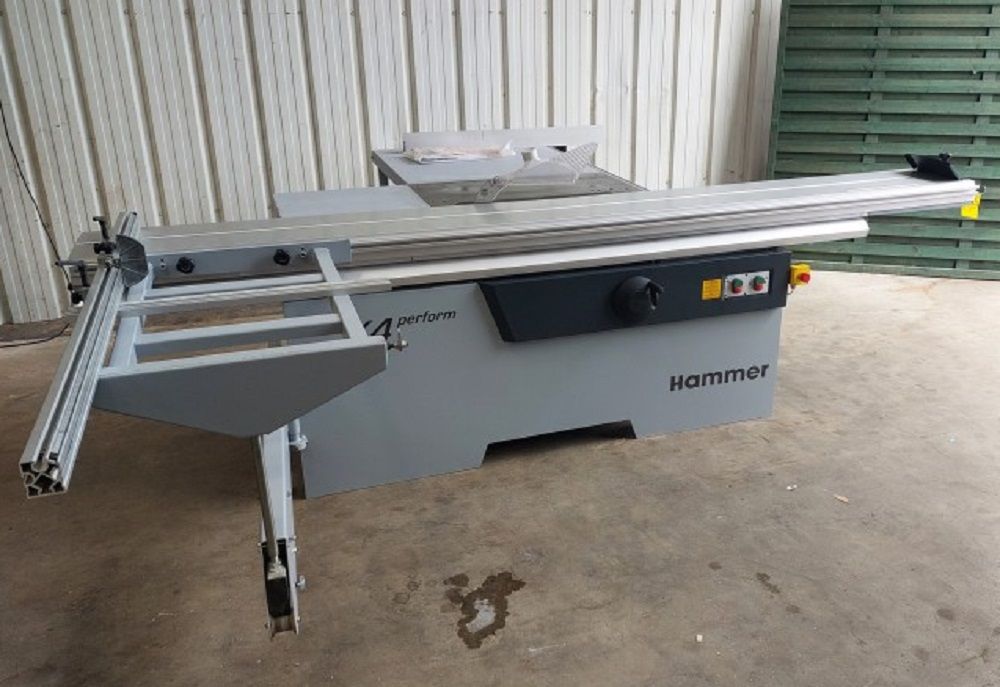

Felder K4 PERFORM HAMMER

SINGLE-PHASE SLIDING CUTTING SAW WITH SCORTING BLADE, WITH 3.20M FLUSH-TO-BLADE CARRIAGE
MAKING CAPACITIES:
- Ripping length, carriage travel: 3200 mm
- Maximum cutting width at the rip fence: 1300 mm
- Squaring capacity (end cutting, crosscutting): 2600 mm
- Blades tilt 90° - 45°
Maximum cutting height at 90°: 104°
- Blade speed: 4800 rpm
- Scoring saw speed: 9000 rpm

COMPOSITION:
- Mechanically welded frame
- Worktop height: 90 cm
Main table (WxD) 83x135 cm
Left side table extension (WxD) 51x43 cm
- Cap held on riving knife
- Max saw blade Ø315 mm, bore Ø30 mm
- Scoring saw blade Ø120 mm, bore Ø20 mm
Manual blade and rip fence control
Retractable 1000x90 mm parallel fence
- Sliding carriage flush with the blade 3200x315 mm, with X-ROLL handle for smoother movement
Clamping shoe (ripping stop) & pusher
- Squaring table (Side frame) WxD: 920x540 mm
Telescopic and tilting main ruler
1 reversible stop
Intermediate supports in the frame, 440 mm from the carriage, with angle indicator

OTHER FEATURES :
- 220V main power supply. Single-phase 50Hz
- 3 kW (4 hp) saw motor
- 0.6 kW scoring motor
Exhaust: Upper inlet Ø50 mm, lower Ø100 mm
- Recommended flow rate: 955 m3/h
- CE marked, Padlockable disconnect switch, Mushroom stops
Dimensions for disassembled transport (LxWxH): 3200x1000x900
