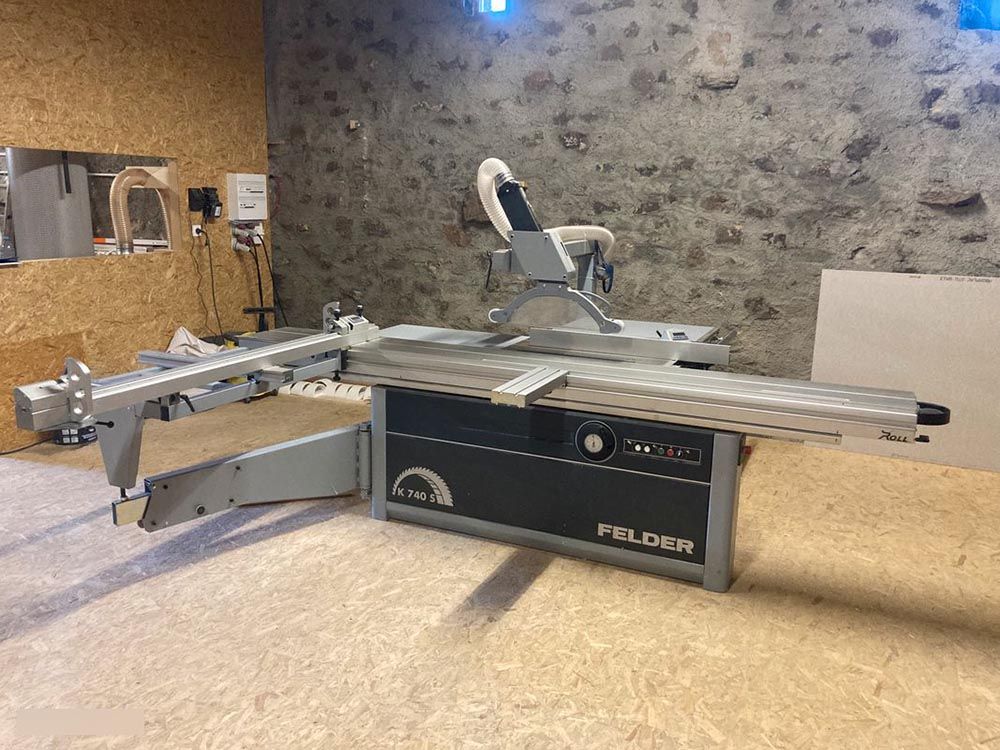

Felder K740S
EUROPE (Western and Northern)
Sliding table saw
Features:
- 7.3 kW (10 hp) / 3 x 400V (S6) motor

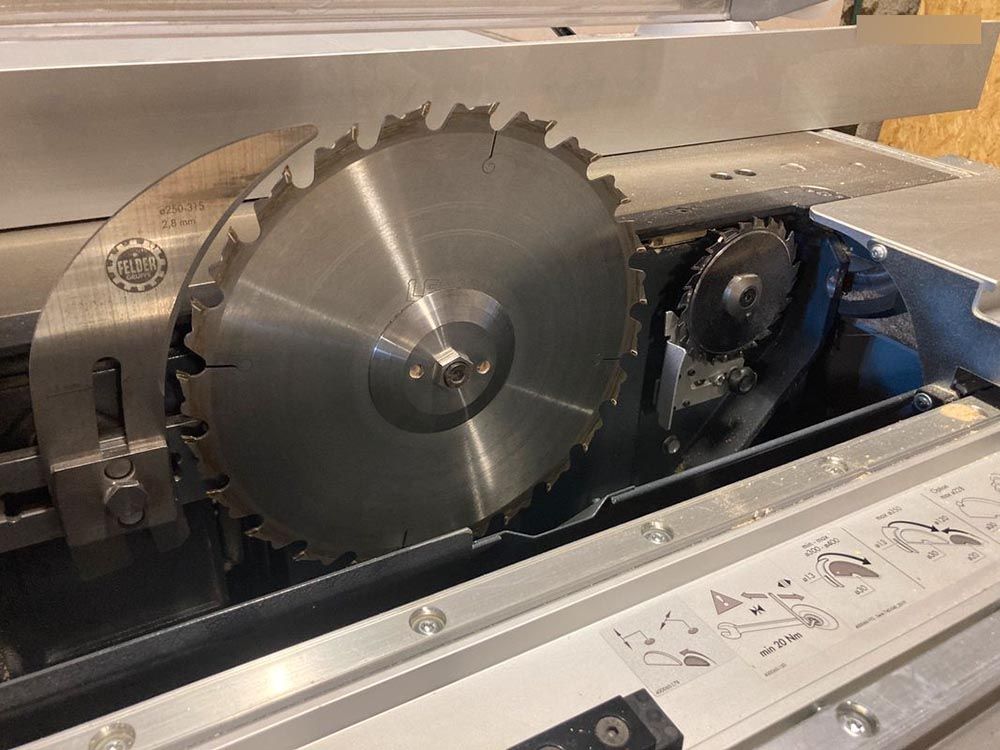

- Saw unit with double segment guides
- 300 to 400 mm saw blade
- Max. cutting height 140 mm
- Adjustable tilt from 90° to 45° via handwheel
- Saw shaft with 30 mm bore, [URL hidden for your safety] 4000 rpm rotation, electric sawing height adjustment
- 1200 mm circular saw extension from the blade center
- Saw stop for guidance on a 50 mm diameter cylindrical shaft with digital readout and fine adjustment,
magnetic strip for 1240 mm cutting width
- Scoring unit with 3x400V 50 Hz motor, 120 mm diameter scoring unit
- Saw tilt display on digital clock in the adjustment handwheel, anodized aluminum sliding table with 3200 mm cutting length
- "X-Roll" system, the Felder sliding table guide system, on/off switch on the sliding table
- Upper guard, 1250 mm cutting width
- Height-adjustable 90° and angle cut guards Tiltable working area, saw blade diameter 400mm
- Dust extraction port D-80mm
- Sliding table 1500/Series 700, working surface 1150x640 mm with 3200 mm guide and 1 digital stop (up to 1900mm)
- Heavy-duty industrial eccentric clamp, table extension for X-roll carriage, adjustable scoring blade HW D=120mm
- Saw blade HW D=315mm LR (for melamine panels)
