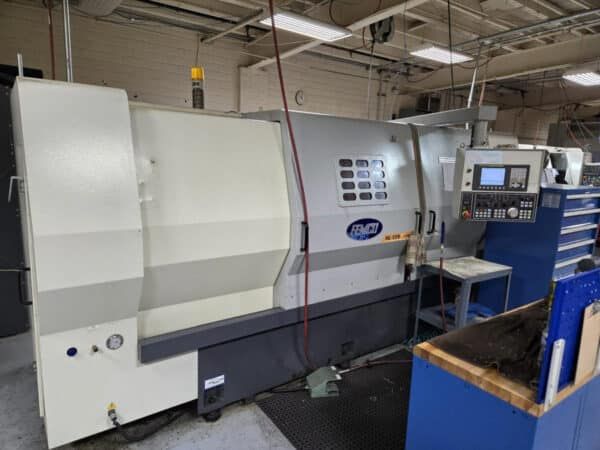

Femco Fanuc 0i-TC CNC control 2500 RPM HL-55S x 1250 2 Axis

FEMCO HL-55S x 1250
2014

Maximum turning diameter 25.4"
Maximum turning length 42.12"
Maximum bar capacity 4.65"
Swing over bed 28.4"
Distance between centers 46.4"
X axis travel 13.4"
Z axis travel 47.6"
Rapid traverse X axis 472 IPM
Rapid traverse Z axis 591 IPM
Spindle nose A2-11
Spindle bore 5.2"
Spindle speed 25–2500 RPM
Spindle motor 35 HP
Turret capacity 12 stations
Turret index time 1 second
Tailstock body travel 14.3"
Tailstock quill diameter 3.54"
Tailstock quill stroke 4.72"
Tailstock taper MT-5
Power source AC 220 V, three-phase, 60 Hz
Power requirement 68 amps
Overall dimensions 126" x 68" x 80" high
Machine weight 17,500 lbs

Fanuc 0i-TC CNC control
12-station turret
15" hydraulic chuck
Hydraulic tailstock with power quill
Chip conveyor
Coolant system
Automatic lubrication system
Foot-operated control for chuck and tailstock
Box way heavy-duty construction
