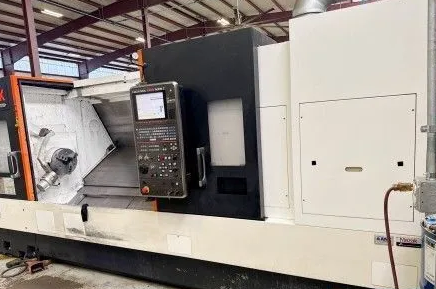

Mazak Mazatrol Matrix Nexus 2 3,300 RPM QTN-350MSY 4 Axis

X axis travel: 10.75"
Y axis travel: 4"
Z axis travel: 63.19"
W axis travel: 62.402"
Rapid traverse (X/Y/Z/W): 1181 IPM
Control: Mazatrol Matrix Nexus 2
Coolant thru spindle: 213 PSI
Helical interpolation
Synchronized tapping
EIA/ISO
Tool presetter
Automatic tool eye
Bar capacity: 4.02"
Maximum swing: 29.5"
Standard machining diameter: 13.2"
Maximum machining diameter: 16.5"
Main spindle speed: 35–3,300 RPM
Main spindle nose: A2-11
Main spindle through-hole diameter: 4.41"
Main spindle motor (30 min/cont): 40 / 30 HP
Main spindle torque: 596 ft-lbs
Second spindle speed: 35–4,000 RPM
Second spindle nose: A2-8
Second spindle motor: 25 HP
Mill spindle speed: 4,000 RPM
Milling motor output: 10 HP
Milling spindle torque: 70 ft-lbs
Number of tools: 12
Tool size (turning): 1"
Tool size (boring): 2"
Tool indexing time (next/opposite): 0.25 / 0.8 sec
Main spindle chuck size: 12"
Max support weight (main/second): 1,433 lbs / 881 lbs
Machine height: 85.4"
Machine width: 95.3"
Machine length: 220.5"
Machine weight: 29,000 lbs
Chip conveyor
