1/1
Femco WRD 40/1000. 1920 v/min
Ref :
2717493-3-AW
Condition :
Used
Manufacturer :
Femco
Model :
WRD 40/1000.
Spindle Speed :
1920 v/min
Year(s) :
1981
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

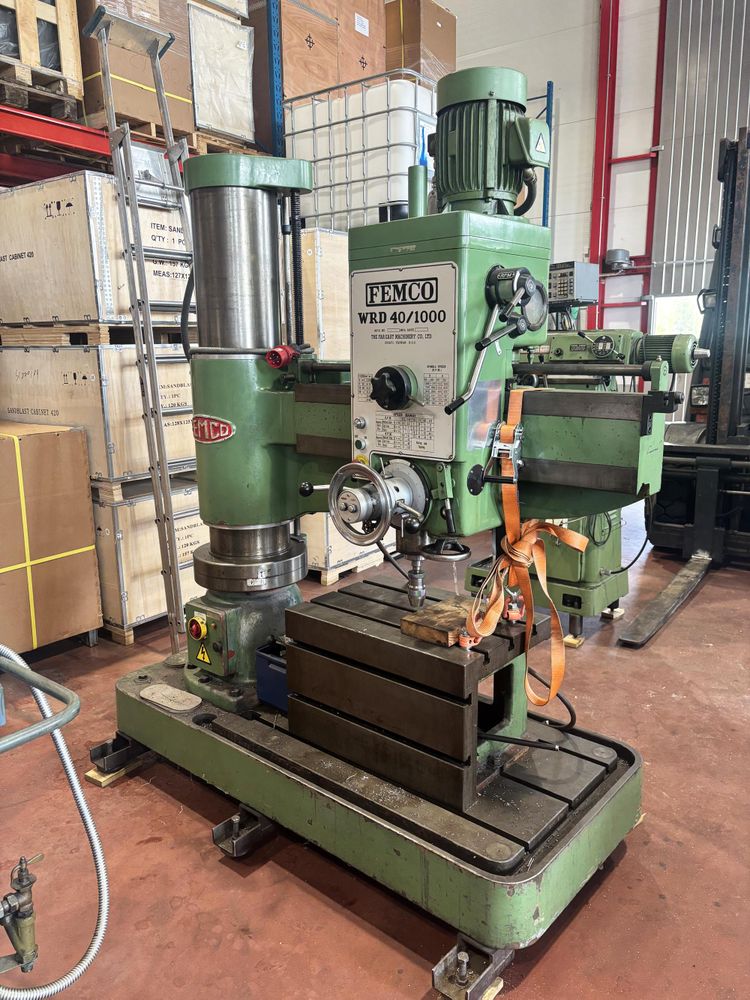

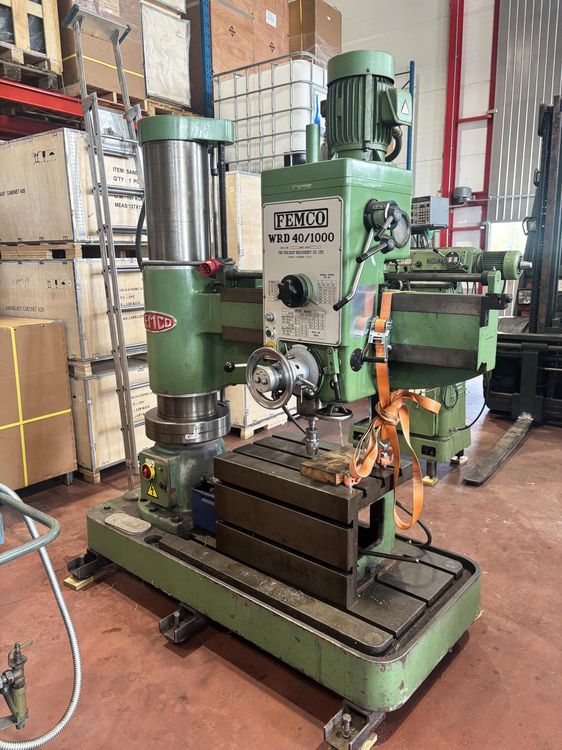

Radial drilling machine Femco WRD 40/1000.
Year: 1981.
Min-max throat (column - spindle center): 265-1020 mm
Drill capacity steel: 40 mm
Drill capacity cast iron: 50 mm
Quill stroke: 300 mm
Spindle taper: MT4
Spindle speed: 40-1920 v/min
Automatic quill feed: 0,07-0,96 mm/r
Column diameter: 280 mm
Spindle head travel at arm: 755 mm
Min-Max distance foot base - spindle nose: 205-1100 mm
Drill cube size (LxWxH): 650x400x450 mm
Spindle motor: 2,2 kW
Elevator motor: 1,2 kW
Clamping motor: 0,4 kW
