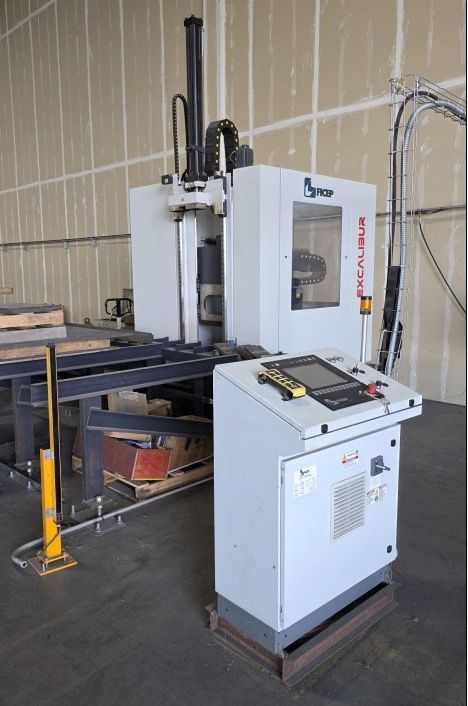

Ficep Excalibur 1201EX 3,000 RPM (variable)

X-Axis Travel (automatic)
Y-Axis Travel (automatic)
Spindle: 1 Spindle
Control System: Ficep CNC with touchscreen HMI interface
Spindle Power: 20 HP (15 kW)
Spindle Speed: Up to 3,000 RPM (variable)
Tool Changer: Automatic 8-position
Drilling Capacity: Up to 40 mm (1-9/16″) diameter
Beam Width Capacity: Up to 1,200 mm (47″)
Beam Height Capacity: Up to 600 mm (24″)
Material Length Handling: Variable – integrates with roller feed or conveyor systems
Positioning Accuracy: ± 0.1 mm
Drive System: Servo-driven ball screw axes
Cooling System: Internal through-spindle coolant system
Electrical Requirements: 460 V / 3 Phase / 60 Hz
Machine Weight: ≈ 11,000 lb
