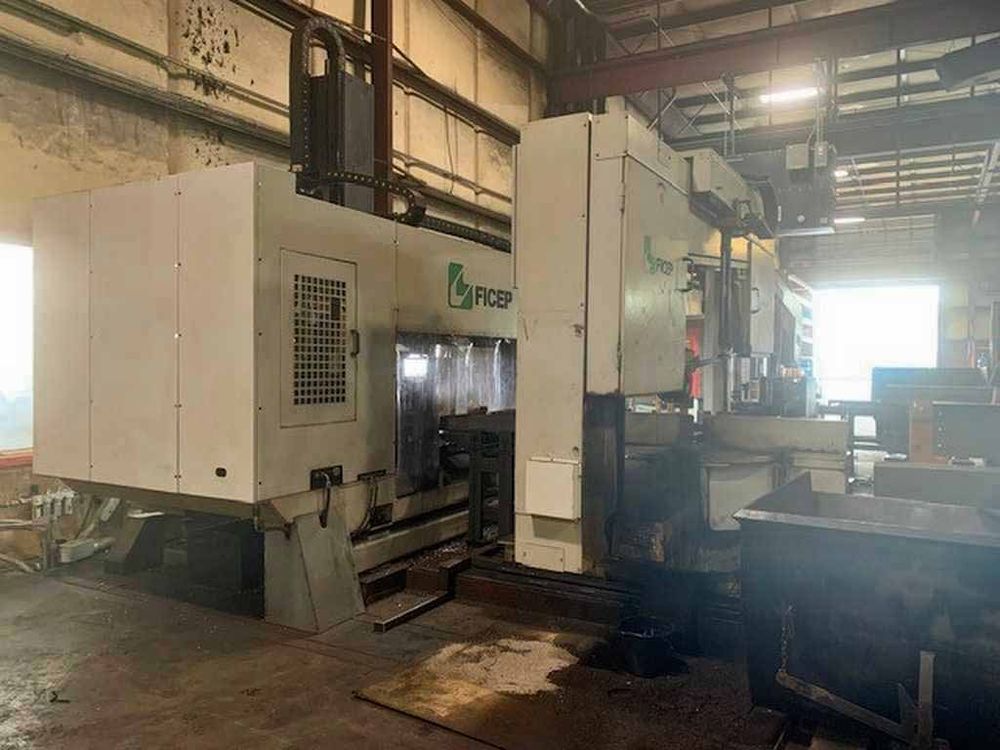

Ficep 1001 DDB + K100 2500 RPM

Number of rotating spindles 1
Beam depth min.–max. 3 1/8" – 40"
Flange height min.–max. 3/8" – 17 3/4"
Maximum drill diameter 1 9/16"
Maximum drill thickness 4"
Spindle motor power 22 HP
Spindle speed 180–2500 RPM
Maximum sawing capacity at 90° 40" × 17 3/4"
Sawing capacity at 45° 24 3/8" × 17 3/4"
Saw blade speed 186–557 FPM
Saw motor power 12 HP

Equipped With
Ficep Pegaso CNC control
Monospindle 180° rotary drilling spindle for drilling on three sides
Six-position tool changer
Scribing on three sides
Carriage feed
65 ft powered infeed conveyor with transfers
40 ft powered outfeed conveyor
Recently replaced spindle, spindle motor, axis motor, and gripper arm
