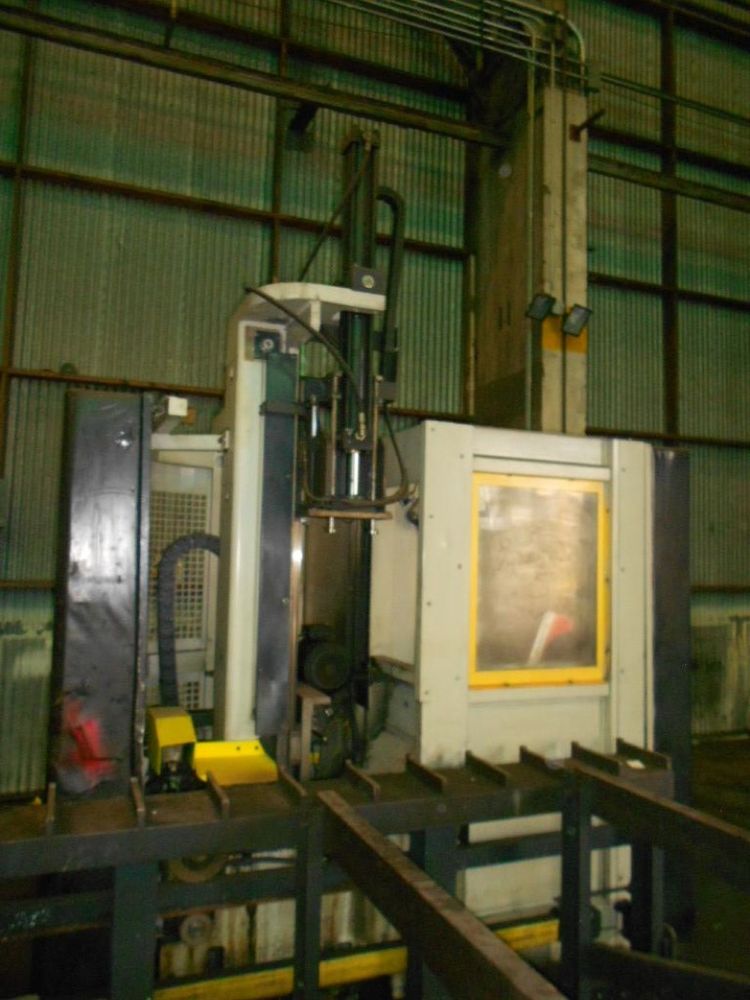

Ficep VICTORY 1001 CNC Single Spindle Traveling Column Drill 500 RPM

Maximum Process Length (X-Axis): 50'
Tower Positioning Speed (X-Axis): 65 FPM
Drill Head Positioning Speed (Y-Axis): 16 FPM
Fanuc 210is-T 2-Axis CNC Control
Web Probe
Maximum Cutting Width: 10'
Maximum Cutting Length: 40'
Maximum Beam Section: 40" x 40"
Spindles: 1
Drill Heads: 1
Maximum Drilling Diameter: 1-9/16"
Maximum Drilling Thickness: 1-9/16"
Spindle Stroke: 12"
Spindle Speeds: 70 - 500 RPM
5.5 HP Spindle Motor
Total Vise Clamping Pressure: 10 Tons
Table Length: 60'
Table Width: 8'
(6) 120" Heavy Duty Bed Sections
460 Volt Electrics
2 HP Hydraulic Power Unit
