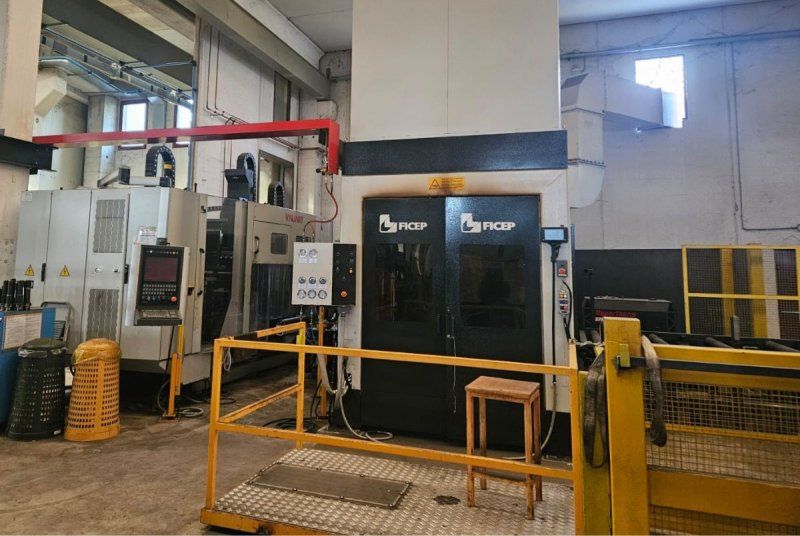

Ficep VALIANT 1004 VLFRC 5000 rpm
EUROPE (Western and Northern)
Drilling and Thermal Cutting CNC Automatic Line
FICEP VALIANT 1004 VLFRC
Year: 2022
Min. Flat Size: 100 mm
Max. Flat Size: 1000 mm
Min. Angle Size: 80 x 80 x 6 mm
Max. Angle Size: 300 x 300 x 35 mm
Min. Channel Size: 80 mm
Max. Channel Size: 300 mm
Min. Square Tube Size: 80 x 80 mm
Max. Square Tube Size: 450 x 450 mm
Min. Rectangular Tube Size: 80 x 40 mm
Max. Rectangular Tube Size: 1000 x 450 mm
Spindle Speed: 180–5000 rpm
Spindle Power: 31 kW
Spindle Type: HSK-A80
Max. Drilling Diameter: 40 mm
Horizontal Travel (Head): 615 mm
Vertical Travel: 1220 mm
Tool Magazine Capacity: 6 positions
Control Unit: FICEP Serie Pegaso
Thermal Cutting Source: Hypertherm XPR300
Loading Length: 15000 mm
Unloading Length: 12000 mm
Drilling Unit: Included
Marking Unit: MKT 36N
Thermal Cutting Unit: FRC
Beam Compatibility: Double T Beams with Height 80–1015 mm, Flange Width 42–450 mm
Drilling Heads: 3
Max. Positioning Weight: 8500 kg
Max. Linear Weight of Section: 450 kg/m
