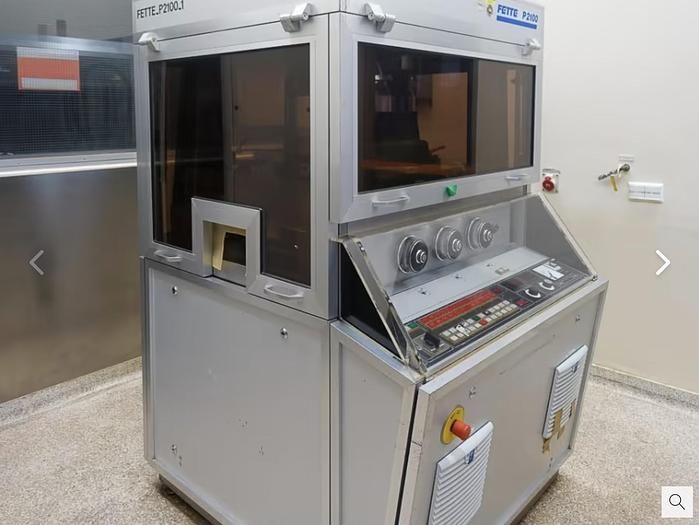

Fette P2100 Tablet Machine

29 sealing stations
Max. pressing force 80kN,
Keyway available for making capsule type tablets.
Max. precompression force 15kN,
Max. tablet diameter 25mm
Max. tablet height 11mm
Max. tablet production 130,500 pcs/h
The machine can do pre-compression and then compression.
Max. filling depth 22 mm
Pitch circle diameter 410 mm, punching disc speed 22-75 min-1
Punch shape EU1
Diameter 38.1 mm
Diameter height 23.8 m
Diameter of punch shank 25,35
Upper and lower punch length 133,6 mm
Immersion depth of upper punch 2-6 mm
Projected floor area 1156x1306 mm
Height of machine with/without hopper 2055/1920 mm
Total weight 2500 kg
