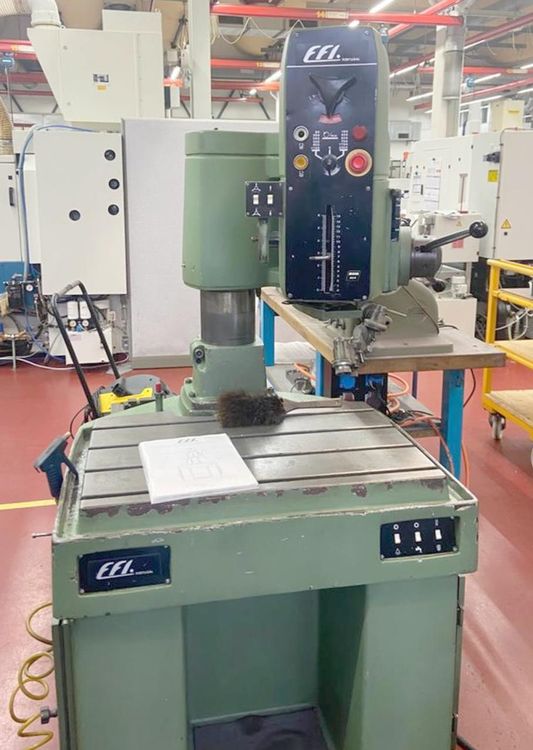

FFI FJR 2300 rpm

High-speed radial drill
FFI FJR
Drill capacity in steel
30 mm
Drill capacity in cast-iron
32 mm
Max. taping diameter M
20
Depth of throat
170 - 580 mm
Table length
880 mm
Table width
585 mm
Number of T-channels
4
T-channel width
18 mm
Distance of the T-slots
150 mm
Taper in spindle
4 MT
Spindle stroke
150 mm
Spindle speeds:
number (steps)
12
from
80 rpm
up to
2300 rpm
Feeds:
number (steps)
3
from
0.1 mm/r
up to
0.22 mm/r
Distance from drill-plate
to spindle: min.
210 mm
max
590 mm
Column diameter
160 mm
Voltage 50 Hz 3x
380 Volt
Spindle motor
1.4 / 1.0 kW
Length
880 mm
Width
700 mm
Height
2030 mm
