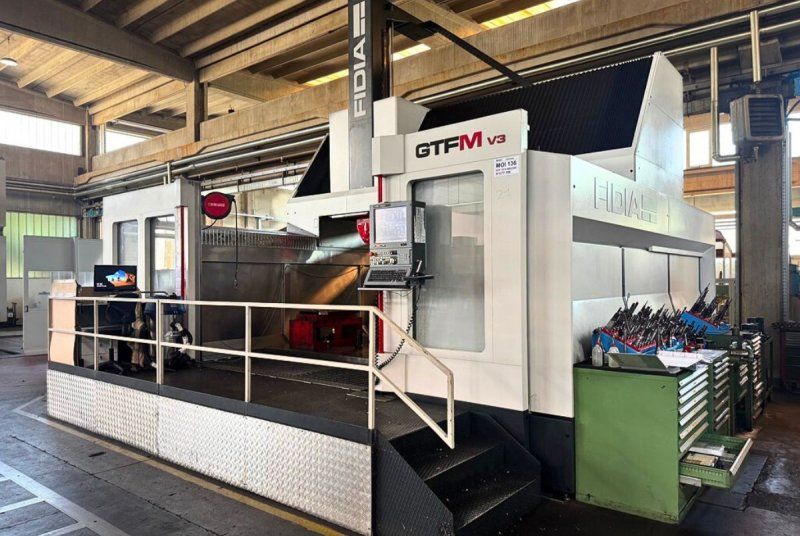

Fidia GTF3514 MA2200 5 Axis

Ref : 2737127-3-GO

Condition : Used

Manufacturer : Fidia

Model : GTF3514 MA2200

Nb Of Axis : 5 Axis

Year(s) : 2015

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Longitudinal travel: 2200 mm
Transversal travel: 3500 mm
Vertical travel: 1400 mm
Rapid feeds L-T-V: 30 m/min
Table size: 3500 x 2200 mm
A/B axis automatic
HSK-63A
A-axis -110° +95°
B-axis ±360°
Spindle speed: 24000 rpm
Tool magazine: Chain-type; 42 positions
Control unit: Fidia C40 Vision
Distance between uprights: 4200 mm
Weight: 62000 kg
Swarf conveyor
Portable handwheel
