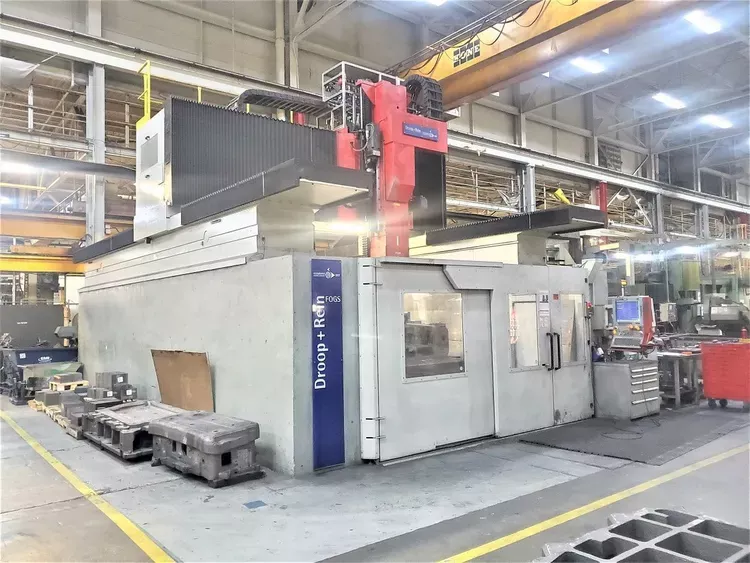

Droop & Rein FOGS 3068C 5 Axis

X-Axis Travel 267"
Y-Axis Travel 118"
Z-Axis Travel 59"
C-Axis 360 Degree
B-Axis +/- 115 Degree
Clamping Plate 118" x 236"
Ram Section 23.6" x 24"
Horizontal Clearance Between Columns 4,090 mm
Vertical Clearance Clamping Plate, Cross Rail 94"
Clamping Plate Distance Min 27.5" Spindle Center Line, Max 86.6"
Clamping Plate Distance Min 10.6" By Vertical Motor Spindle, Max 69.6"
Clamping Plate Distance Min 7.8" Spindle Center By Vertical Motor Spindle, Max 66.9"
Feed Rate X-Axis Up to 30 m/min
Feed Rate Y-Axis Up to 30 m/min
Feed Rate Z-Axis Up to 30 m/min
Feed Rate C-Axis 4,320 degree/min
Feed Rate B-Axis 4,320 degree/min
Rapid Feed Rate X-Axis Up to 40 m/min
Rapid Feed Rate Y-Axis Up to 40 m/min
Rapid Feed Rate Z-Axis Up to 40 m/min
Rapid Feed Rate C-Axis 4,320 degree/min
Rapid Feed Rate B-Axis 4,320 degree/min
Milling Spindle Motor 26 Hp
Electrics 600/3/60/115 Amps
CNC Control Fidia C20
30 Tool Automatic Tool Changer
Fork-Type Head for Adaptation of Different Motor Milling Spindles
Fixation of Spindles in Fork-Type Head by Hydraulic Clamping
Temperature Sensor for Length Compensation
B-Axis Swivel Motor Milling Spindle, Continuous
Machine Weight Approx. 209,000 Lbs
