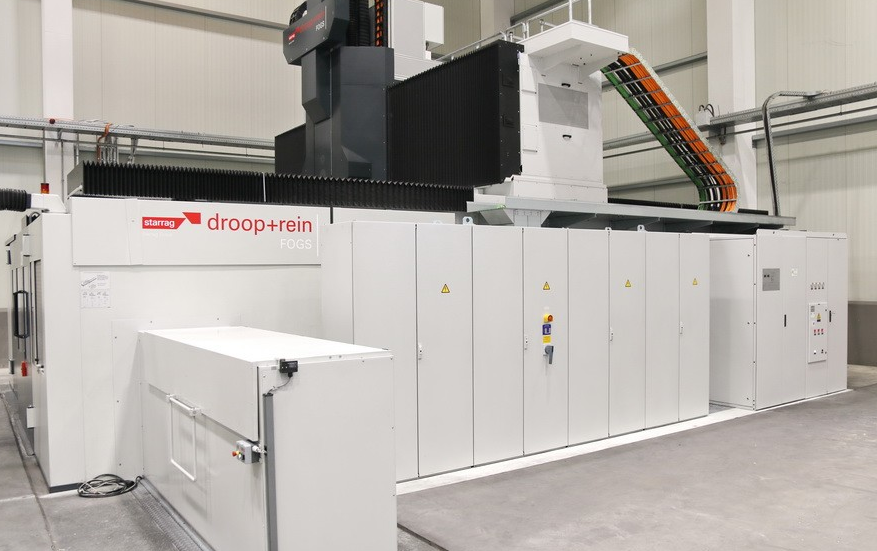

Droop & Rein FOGS 40 60 C 5 Axis

5-axis high-speed gantry machining center
Fork head
Automatic tool changer
Spindle head change system
Exhaust fan Ringler RI 333 D4 IE2
Test probe HSK A100 m&h RWP 20.41
Tool setting Blum
Turning-milling head

Technical Data
X-axis travel 6800 mm
Y-axis travel 4000 mm
Z-axis travel 1500 mm
Control iTNC 530 HSCI Heidenhain
Distance between columns max. 5090 mm
Distance spindle center to table 1825 mm
Main spindle turning speed max. 10020 rpm
Main spindle power 20 kW
Tool taper HSK-A100
B-axis swivel +115°/-115°
C-axis rotation ±200°
Table surface 6000 x 3000 mm
Max. table load 50 t
Table height above floor 100 mm
Number of T-slots 12
T-slot width 28H12 mm
T-slot pitch 250 mm
Tool positions HSK A100: 23+1
Max. tool diameter 80 mm
Max. tool length 450 mm
Rapid traverse X/Y/Z 40000 mm/min
Rapid traverse B/C 4320 °/min
Feed speeds X/Y/Z 30000 mm/min
Working speed B/C 2160 °/min
Acceleration max. 3.2 m/s²
Total power requirement 180 kVA
Machine dimensions approx. 12.5 x 15.0 x 7.0 m
