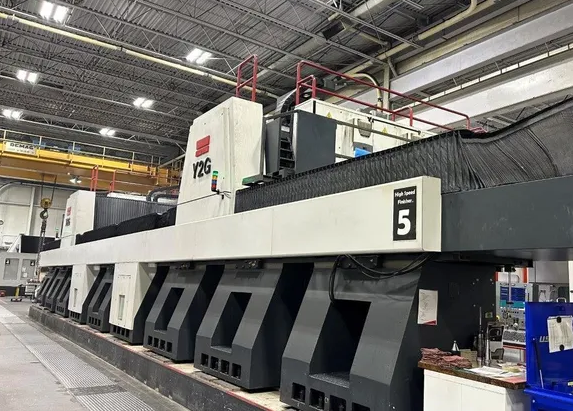

Fidia Y2G 5 Axis

FIDIA Y2G
Year: 2009

X Axis 629.92"
Y Axis 137.79"
Z Axis 59.05"
A-axis +110°/-90°
C-axis +/- 360°

Spindle Taper #1 HSK-63
Spindle #1 RPM 24,000 RPM
Spindle Taper #2 HSK-100
Spindle #2 RPM 14,000 RPM
Max Table Weight 150000 lb

(2) Fidia C20 CNC Controls
M5A Full Continuous 5-Axis Heads
(2) 42 Automatic Tool Change Stations
(2) Fidia Tool Measuring
(2) 1000 PSI Thru Spindle Coolant
(2) 250 PSI Halo around Spindles
(2) Wash Down Hoses
(2) Spindle & Axis Chillers
(2) Tool Measuring Systems
157" x 236" Floor Plate
Bi Folding Doors on Each End
Fidia X Power Drives
X-Axis Rack & Pinion
Y/Z Axis Ball Screw
Linear Rails on X,Y,Z Axes
Dropsa MQL Tool Lubrication
