Fischer & Krecke 16S-8 8 1300 mm

Speed 460 m/min
Max. Size 1300 mm
Min. Size 650 mm
Condition Good

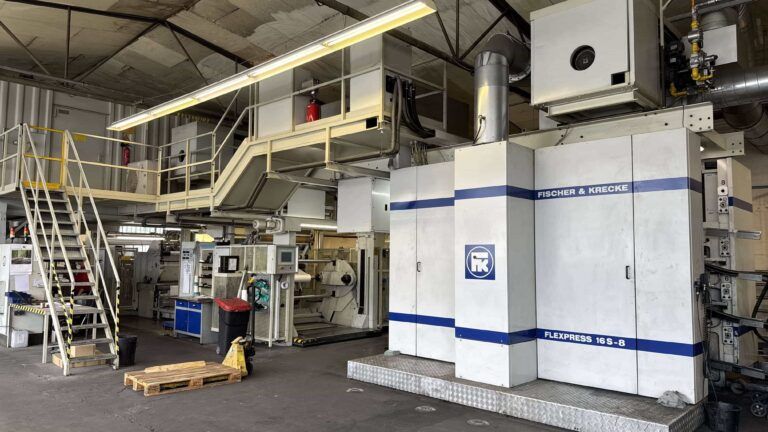

8-Color Flexo Rotary Printing Machine

Number of printing units: 8 colors
Print width: 1,250 mm
Material width: 650 mm, max. 1,300 mm
Print length: 320 mm, max. 800 mm
Mechanical performance: 460 m/min
Roll diameter: 1,000 mm (unwinder/rewinder)
Core equipment: 70, 76, 100, 150 mm
Gearless
Automatic roll change for unwinder & rewinder
Column lifting system for shaft unwinder/rewinder
Digital printing unit control with servo drive
Currently printed materials: Papers with grammage 50-500 g
Water-based inks
Sound dampened: 85 dBA (VBG121)
Video web inspection system with 1-chip camera
2 Web guides
Drying: gas
Corona treater: No

HIGHLIGHTS:
Compressed air cleaning system (7 bar)
Cooling water circuit with temperature control
Clamping shaft system also for film materials

ACCESSORIES :
Sleeves: Set for print widths from 60-1250 mm available
Print cylinders: Set for print lengths from 440-660 mm available

STATUS:
Machine is currently in operation
