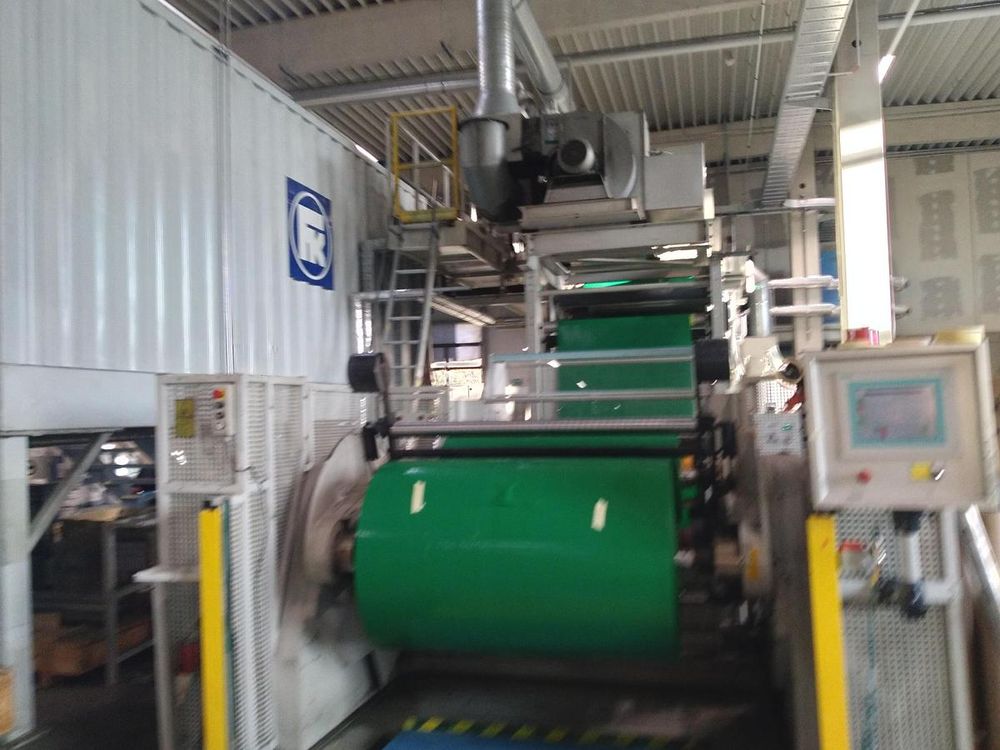

Fischer & Krecke FLEXPRESS 16S-8 8 1250 mm

Condition Used (visible in production)
Nr. of colours 8
Web width ( Max.) 1300 mm
Printing width (Max.) 1250 mm
Print repeat (Min. - Max.) 320 - 800 mm
Winding System automatic sequence (flying splice)
Unwinding and rewinding max. roll diameter 800 mm
Unwinding and rewinding Core inside diameter 76 or 152 mm
Web tension range (Min. - Max.) 10 N - 250 N
Materials to be printed PET (min. 12 ym), PP, OPP, LDPE and laminates withwidth and thickness inaccordance withweb tension range
Ink to be converted Solvent based ink
Max mechanical speed 360 m/min (Printing speed depending on inks, stereos, design and material)
Drying system Thermo oil | Equipped with dryer Between-color and a final dryer
Servo motor: CI Main Drive | Anilox Roll Motor | Plate Cylinder Motor | Side Register Motor | Plate Cylinder to CI Adjustment Motor | Anilox Roll to Plate Cylinder Adjustment Motor

Other information:
Central impression drum for high register accuracy
Sleeve system for quick job change
Temperature control system | video inspection system
Chamber doctor blade with Autoclean ink system
Web tension control system
Web guiding system (edge control)
automatic register preadjustment for all print units

Water connections
Flow volume temperature control unit (CI drums and frames: approx. 2,0 m*h
Flow volume chill roller: 1,0 m°/h
Water temperature inlet: 12-15 °C
Chill water pressure: Max, 36.2 PSI

Pneumatic system:
Required supply pressure 102 PSI
Air consumption (with printing press and autoclean in operation): 2950 Nl/min
Additinal air consumptiuon at sleeve change: 600 Nl/min
Noise emission In accordance with VBG 121 85 dBA
