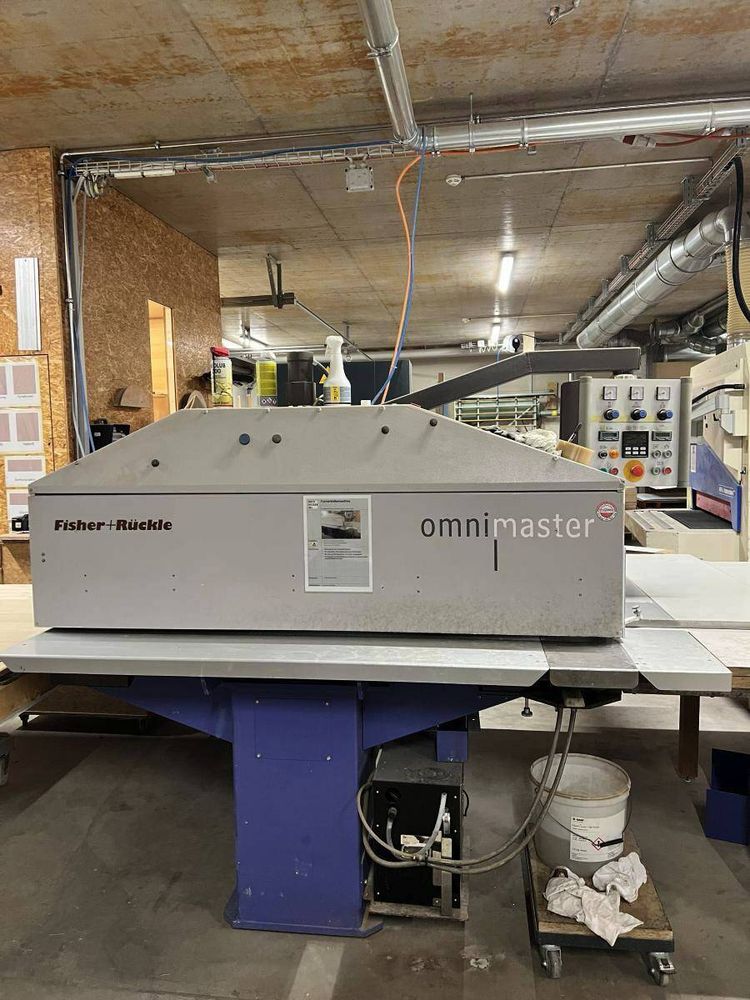

Fisher Ruckle Omnimaster

Longitudinal veneer splicing machine for veneers up to 1.5 mm thick
Perfectly glues and splices veneers longitudinally via direct glue application in a single pass—for fully closed, temperature-resistant glue joints

High throughput
Short processing distance
Spot gluing via integrated glue pot
Glue cooling to extend pot life up to approx. 4 hours
Easy and quick access for refilling the glue pot
High driving force thanks to hydraulic drive
High holding force for the veneers thanks to precisely ground and stepped stainless steel plate chains
Precise temperature and pressure settings, combined with a force-fit veneer feed, result in seamless and uniform glue application and a perfect glue joint.

Technical Data:
Working width 1200 mm
Feed rate adjustable, max. 50 m/min.
Throughput speed (practical empirical value) approx. 20 – 30 m/min.
Veneer strip lengths (in the grain direction) 300 – 3200 mm
Veneer strip widths (across the grain) 45 – 1200 mm
Veneer strip thicknesses 0.4 – 1.5 mm
With integrated glue cooling
Total power consumption approx. 9 kW
Weight approx. 1500 kg
