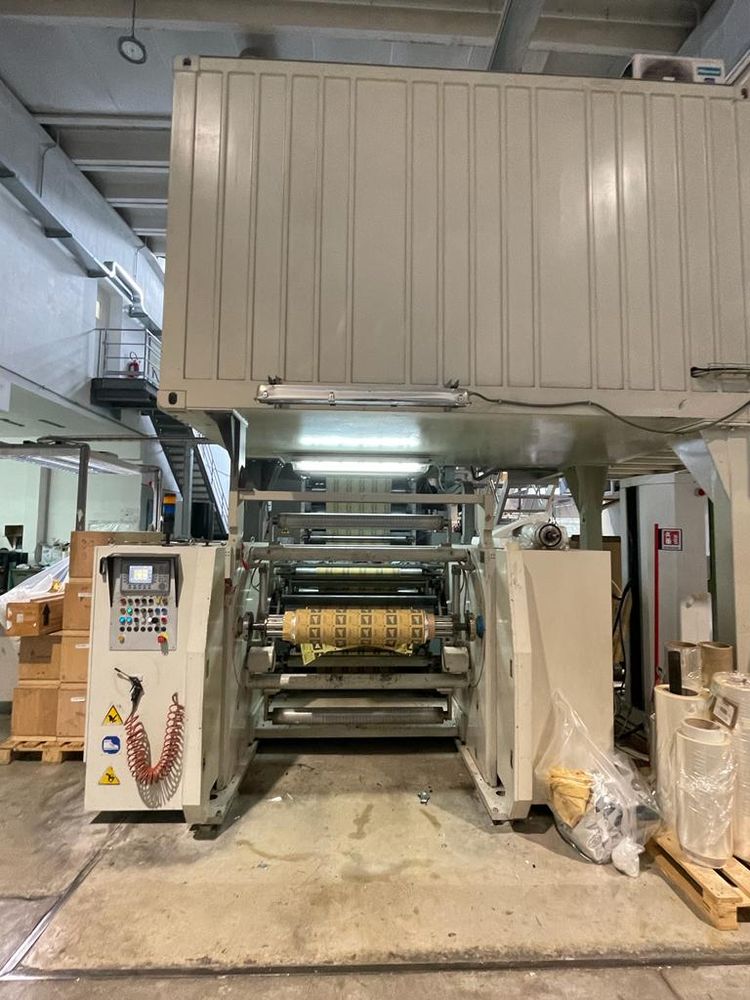

Flexotecnica CHRONOS 10 1200 mm

1.04 Colors (nr) and Type 10 Colors
1.05 Gearless Si
1.06 Print width (mm) 1200 mm
1.07 Material passage (mm) 1250 mm
1.08 Print development min. – max. (mm) 340 - 800 mm
1.09 Mechanical speed (m/min) 350
1.10 Material type (kg) :
Paper and plastic films
Electrical power: 3 x 400 V, 50 Hz.
Air pressure: 6 bar
1.13 Inks Solvent based and water based
1.14 Doctor blade groups: quantity N° 10
1.15 Washing of printing units Yes
1.16 Type of unwinder Automatic, 76 and 152 mm expandable shafts
1.17 Max. diameter on unwinder (mm) 800
1.18 Winder type Automatic, 76 and 152 mm expandable shafts
1.19 Max. diameter on winder (mm) 800
1.20 Heating Gas burner / diathermic oil
1.21 Video camera Yes
1.22 Availability Immediate
1.23 Further information :
N° 280 sleeves
N° 27 anilox
N° 32 rubber rollers
Belts for stepper motors
N° 1 presser for the drum
N° 1 presser for winder
N° 1 card for camera
N° 1 Bieffebi cliché mount
