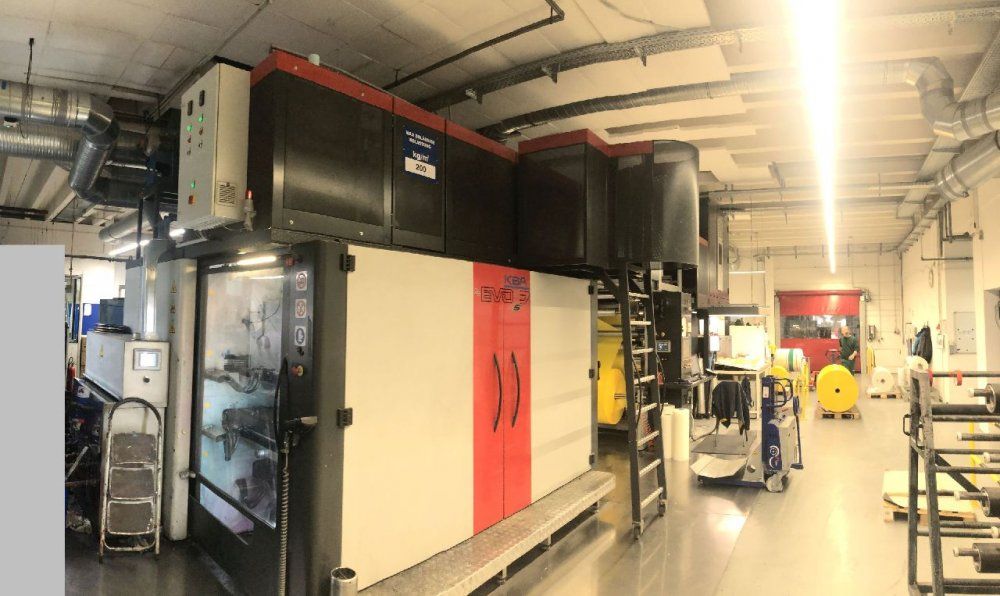

Flexotecnica, KBA EVO XDS 100 8 1000 mm

Number of colors 8
Print possibilityes 8 + 0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1050
Print width (mm) 1000
Min print repeat (mm) 280
Max print repeat (mm) 800
Unwinder type Single
Max reel diameter unwinder (mm) 800
Rewinder type Turret Automatic with roll unloading system
Max reel diameter rewinder (mm) 800
Drying 2 zones - 4 fans final drying tunnwl -electric heaters
Videocamera BST
Corona treatment AFS
Web guides yes in and out
Vyscosity control NO
Washing system Yes
Inking system Closed chamber doctor blades and ceramic anilox sleeves
Anilox 19 as follows : 1x 100 L/cm , 3x 140 L/cm , 3x 200 L//cm, 2x 280 L/cm , 3x 320 L/cm, 6x 360 L/cm , 1x GTTX L
Print Sleeves 218 ( 179 for plates 1.14 mm and 39 for plates 2.54 mm )
as follows :8 for each following repeat ( plates 1,14 mm ) : 280 mm , 290 , 300 , 310 , 320 ,
330 , 340 , 350 , 360 , 370 , 380 , 390 , 400 , 410 , 420 , 440 , 460 , 480 , 500 , 520 , 530 ,
540 , 650 , plus other for plates 2,54
Materials : OPP 20 - 40 my HDPE 30 - 150 my LDPE 30 - 200 my CPP 30 - 90 my
OPTION : DESBA TEC - destillation unit for the waste liquids from the cleaning unit
of the press Machine is well maintained and in a good condition , average printing speed 280 - 300 m/min.
