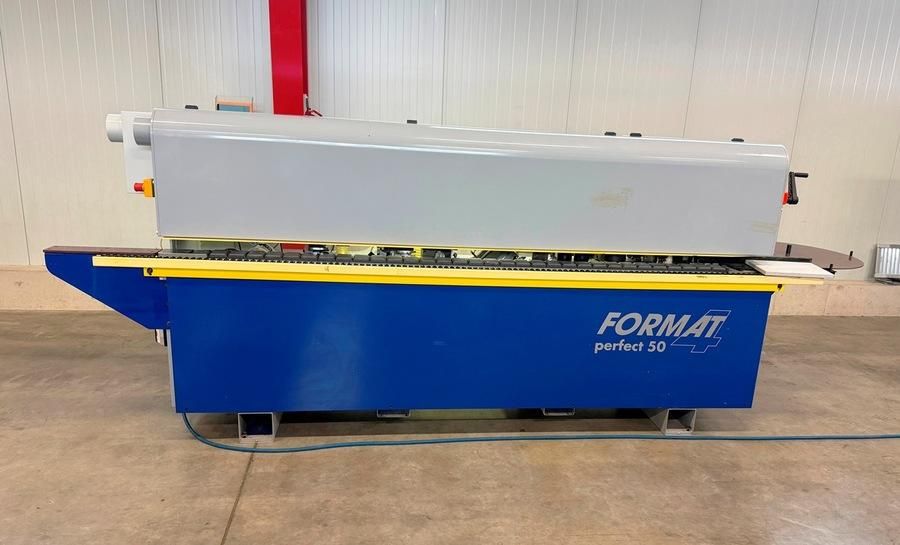

Format Perfect 50

Edge banding machine Format4
114 operating hours
Touchscreen color display
Panel thickness 10 - 55 mm
Minimum panel width 60 mm
Minimum panel length 140 mm
Edge thickness 0.4 - 8 mm
Edge height 12 - 63 mm
Variable feed speed from 12.5 m/min
Spraying of release and cleaning agents

- Workpiece chain conveyor
- Glue roller and glue unit, Teflon-coated, for EVA hot melt adhesive
- Pressing unit
- Impact shears for precutting
- Cross-cut saw unit, pneumatically controlled, inclination 0° - 15°
- Combination trimming unit for flush and radius trimming, inclination up to 15°
- Scraper unit
- Polishing unit
- Blow-drying unit

Suction connection diameter 2 x 120 mm
Operating instructions and electrical circuit diagram available
Transport dimensions approx. 4250 x 1100 x 1700 mm LWH
Weight approx. 1200 kg
