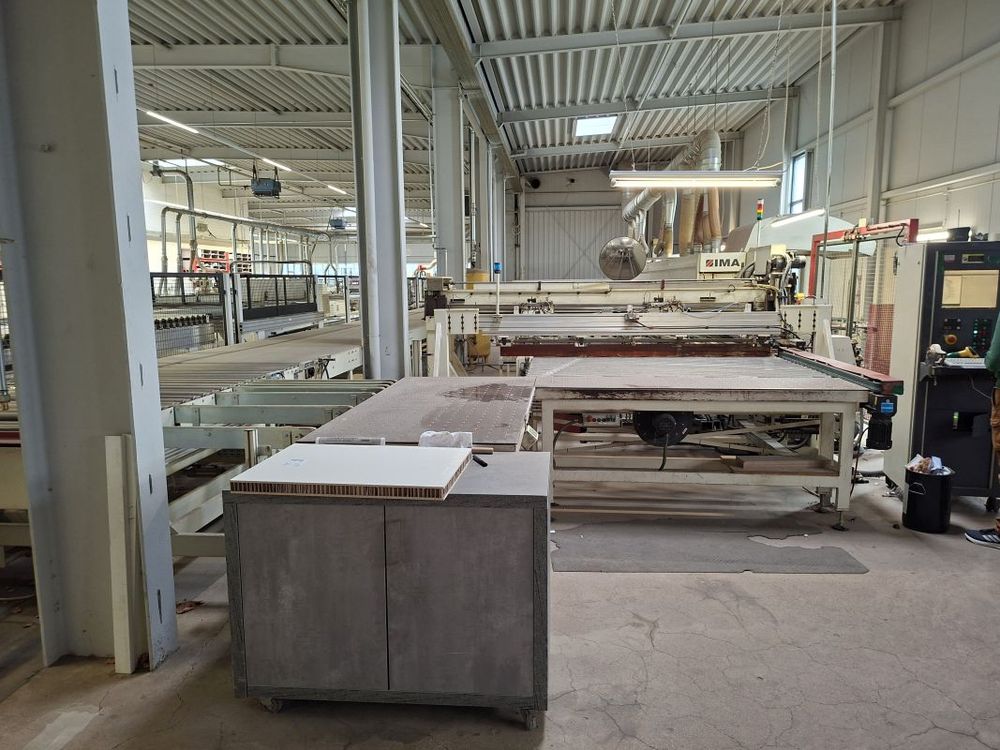

Ima Combima Systems/I/R75/1370

Single-sided edge banding machine
Technical data:
Workpiece chipboard
Workpiece length: 250 - 2800 mm
Workpiece width: 115 - 1300 mm
Workpiece thickness: 8 (format only) - 40 mm
Smallest workpiece: 144 x 250 x 8 mm
Largest workpiece: 2800 x 1300 x 38 mm

Workpiece honeycomb panel
(minimum length in feed direction 300 mm)
Cover thickness: 3.0/4.0/8.0 mm
Machining allowance: Edge thickness
Workpiece length: 300 - 2800 mm
Workpiece width: 300 - 1300 mm
Workpiece thickness: 15 - (with 3 mm support edge only as double panel 100 mm)
Smallest workpiece: 300 x 300 x 15 mm
Largest workpiece: 2800 x 1300 x 100 mm

Workpiece frame panel
(minimum length in feed direction 300 mm)
Cover thickness: 8.0 mm
Machining allowance: 5.0 mm
Frame material: vertically arranged chipboard (reduced feed)
Workpiece length: 300 - 2800 mm
Workpiece width: 300 - 1300 mm
Workpiece thickness: max. 50 mm

Workpiece weight: max. 50 kg
Workpiece shape: rectangular
Material: chipboard, MDF
Surface material: direct coating (melamine paper), paper, foil, veneer
Coating material protruding at the sides 10 mm

Edge material
Paper edges & plastic edges: 0.3 - 3.0 mm
Veneer edges: 0.5 - 1.3 mm
Support edge: 3.0 mm
Edge height: 19 - 104 mm (see max. edge cross-section
(support edge 97 x 3 mm only for double panels)

When using servo cutting knife in 2 gluing section
Max. edge cross-section 200 mm2 for plastic edges
Max. edge cross-section 135 mm2 for veneer edges

Max. upper edge overhang 2 mm

Edge profiles
Paper edge: approx. 0.4 mm Chamfer 15°
Plastic edge: 3.0 mm Radius 3 mm

Technical data Machine
Constant workpiece clearance from the chain conveyor 38 mm (including edge with edge thickness 0.3 - 3 mm)

Throughput width (with 38 mm clearance): min. 115 mm
Workpiece length in feed direction: min. 150 mm
Base height (upper edge of chain conveyor): 960 mm

Feed speed: v=6 - 30 m/min frequency-controlled drive

Inclined roller table SFR 1450/2260/15° for longitudinal and transverse operation
Workpiece length: 300 - 2800 mm (with manual workpiece feeding)
Workpiece width: 190 - 1300 mm
Workpiece thickness: 13 - 60 mm

Servo insertion system x20

Servo stop system x20

Milling/profile milling/grooving unit
1 motor 6.6 kW, 100 Hz, 6000 rpm

Double clamping unit
1 motor 8.0 kW, 100 Hz, 6000 rpm

Milling/profile milling/grooving unit
1 motor 4.4 kW, 100 Hz, 6000 rpm

Milling/profile milling/grooving unit
1 motor 4.4 kW, 100 Hz, 6000 rpm

Hot melt adhesive applicator for 2 adhesive beads
Servo edge feed for support edges in roll form

Milling/profile milling/grooving unit
1 motor 4.4 kW, 100 Hz, 6000 rpm

Milling/profile milling/grooving unit
1 motor 8.0 kW, 100 Hz, 6000 rpm
300 lg radiator, 2 x 1.5 kW for preheating the workpiece edge

Gluing unit for straight edges and adhesive application to the workpiece.
The edge thickness is max. 3 mm, depending on the magazine used
Automatic PU melting system Quickmelt
2-fold edge magazine for roll material 0.3 - 3.0 mm thick
Servo knife for precise cutting of the edge material
Servo edge feed
Glue application for workpiece thickness max. 90 mm

Cutting unit
2 motors 660 W, 200 Hz

Milling unit
1 motor 1000 W, 400 V, 200 Hz, 12000 rpm
30° swivel

Multiple machining unit
1 motor 660 W, 400 V, 200 Hz, 12000 rpm

Multiple profile scraper unit

Milling unit
1 motor 1000 W, 400 V, 200 Hz, 12000 rpm
30° swivel range

Multiple machining unit
1 motor 660 W, 400 V, 200 Hz, 12000 rpm

Multiple profile scraping device

Self-probing scraping unit

Buffing unit
