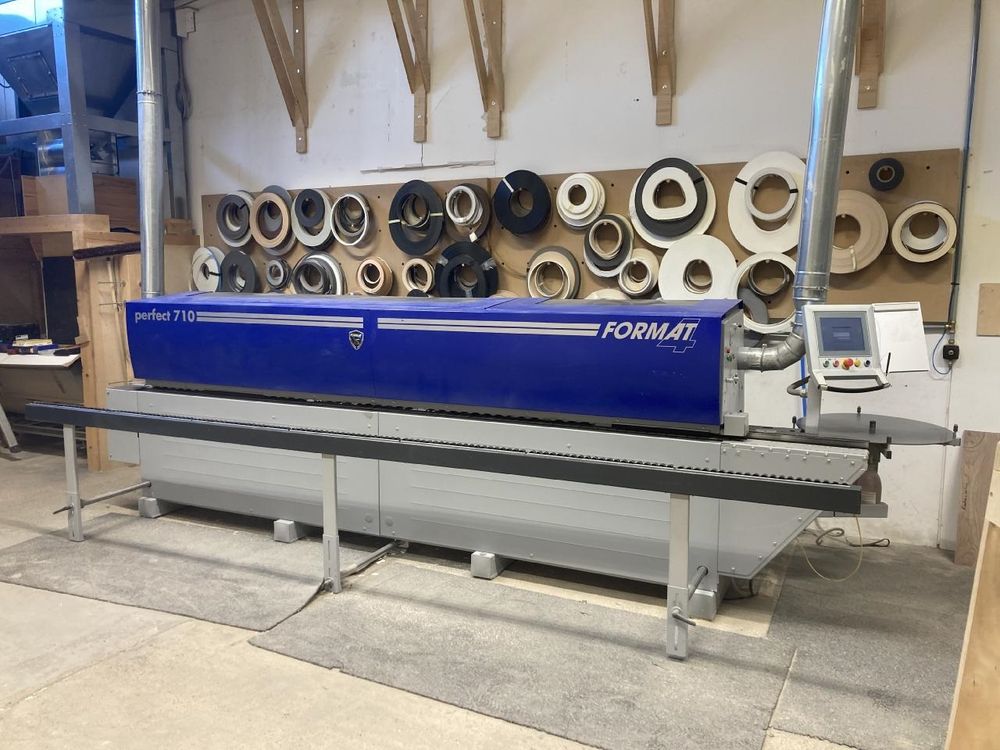

Format Perfect 710 E-Motion

Used Machine
Control unit with 10.4" color touchscreen
Extendable workpiece support
Motorized, positioning-controlled pressure beam
Chain feed with a feed speed of 12 m/min
Roll support plate with ball bearings, d = 770 mm
Dual-motor pre-milling unit / 2 x 1.1 kW
Edge feed for roll and strip material 0.4 - 10 mm (edge ​​detection via infrared sensor)
Teflon-coated glue unit
Pre-melting unit for EVA glue
Replacement glue unit for EVA
Replacement glue unit for PU
Motorized, positioning-controlled clamping unit
Dual-motor cross-cut saw unit / 2 x 0.50 kW
2-motor multifunctional unit for radius, flush, and chamfer milling / 2 x 0.75 kW
Corner processing unit
Radius scraper
Surface scraper
2-motor polishing unit (buffer)
Spray unit for release agent on the machine inlet side
Spray unit for cleaning agent in front of the polishing unit
