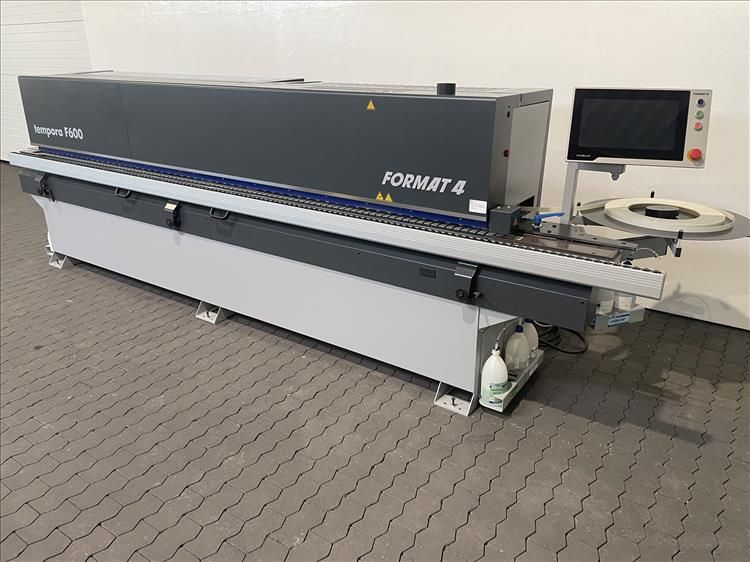

Format Tempora 60.06 glueBox

Edge banding machine used
Touchscreen,
pivoting control panel,
program memory,
automatic print bridge adjustment,
feed via conveyor chain,
extendable workpiece support,
diamond jointing cutter for up- and down-cutting,
glue pot located underneath,
glue pot changing device,
use of PUR adhesives possible,
GLUEBOX,
printing unit with driven roller,
cross-cut saw with 2 HF motors,
pneumatically pivoting cross-cut saw,
flush/radius trimming unit,
motorized positioning control of the trimming unit,
x-motion PLUS,
corner rounding unit with diamond-coated cutter,
radius scraper,
radius scraper with motorized positioning,
surface scraper,
insert-controlled surface scraper,
infeed barrier,
release agent spray device,
lubricant spray device,
cleaning agent spray device,

Technical Specifications :
Edge thickness for rolls: 0.4 - 3 mm,
Edge thickness for strips: 3 - 6 mm,
Workpiece thickness: 8 - 60 mm,
Min. workpiece length: 140 mm,
Feed speed: 10 m/min.,
Screen diagonal: 15 inches,
Joining cutter dimensions: D 80 x 64 mm,
Joining cutter power: 1.1 kW,
Crosscut saw power: 0.35 kW,
Milling station power: 0.75 kW,
Extraction nozzle diameter: 80 + 160 mm,
Compressed air connection: 7 - 10 bar,
Total length: 4,872 mm,
Dimensions (L x W x H): 4,872 x 1,511 x 1,468 mm,
Weight: 1,500 kg
