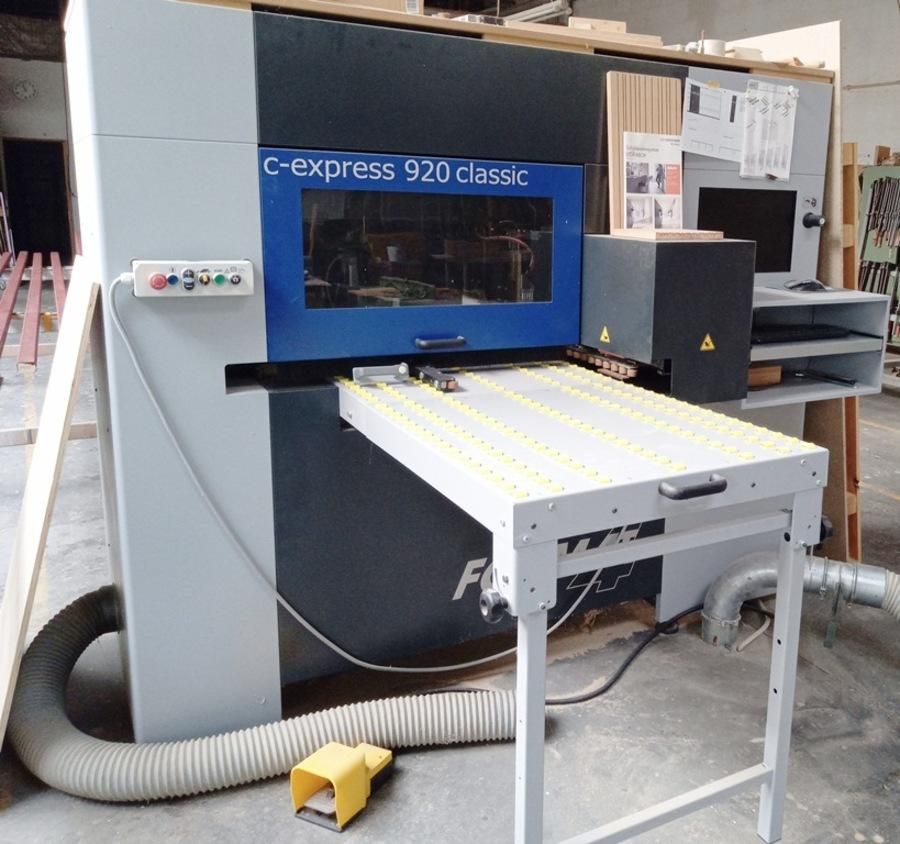

Format4 c-express 920 classic

CNC machining center / CNC drilling center for drilling, sawing, and milling operations from below
Max. workpiece dimensions: X 3000 mm / Y 920 mm / Z 50 mm
Min. workpiece dimensions: X 280 (270) mm / Y 180 (70) mm / Z 10 mm

Incl. collet clamping system for CNC through-feed technology
Laser “0” double reference
Drilling head DH15 6H1S (9 vertical and 6 horizontal drilling spindles / 1 grooving saw in X direction)
Very simple operation via graphical user interface
1 machine software licence
1 machine workstation with CAD function
19" LCD colour display, mouse and keyboard
Additional roller inserts to reduce the minimum workpiece width to 70 mm
1 milling spindle 3.3 kW (S1) / manual ER32 collet / max. speed 24000 rpm
1 additional vertical clamp
1 roller table extension at the front and rear
1 DP shank cutter D12/NL23.5/Z2+2+Q/GL80/S20 RL, diamond-tipped version
1 collet 20 mm ER 32 DIN 6499
2 carbide dowel drills HW/D5/NL43/S10x20/GL70/RL
3 carbide dowel drills HW/D5/NL43/S10x20/GL70/LL
1 carbide through-hole drill HW/D5/NL44/S10x20/GL70/LL
3 carbide dowel drills for blind holes with back guide, right-hand cutting, D=8 mm, BT=30 mm, GL=57.5 mm, shank 10x20 mm
3 carbide dowel drills for blind holes with back guide, left-hand cutting, D=8 mm, BT=30 mm, GL=57.5 mm, shank 10x20 mm
1 carbide dowel drill HW/D8/NL43/S10x20/GL70/LL
1 carbide hinge boring bit HW/D15/S10x26/GL70/Z2+2/RL
1 carbide hinge boring bit HW/D35/S10x26/GL70/Z2+2/RL
1 carbide circular saw blade: 100x5/3.6x20 Z24/FZ, without pinholes

X-axis speed 25 m/min
Y-axis speed 25 m/min
Z-axis speed 15 m/min
Electrical connection 7.0 kW
Motor power drilling head 1.5 kW
Drilling head speed 3600 rpm
Circular saw unit speed 9000 rpm
Max. number of horizontal spindles 2+2, 1+1 / distance between horizontal spindles 32 mm / max. diameter of horizontal spindles 15 mm
Max. number of vertical spindles 9 / distance between vertical spindles 32 mm / max. diameter of vertical spindles 8x 15 mm, 1x 35 mm
Max. circular saw blade diameter 100 mm
Max. horizontal drilling depth 30 mm
Max. vertical drilling depth 55 mm
Min. workpiece length 270 mm

Compressed air connection: operating pressure 6 - 8 bar / nominal compressed air consumption 60 NL/min / air consumption 1650 m3/h
Extraction: extraction hose diameter 140 mm / min. air velocity 26 m/s / min. nominal negative pressure 1000 Pa / min. volume flow 1440 (1050) m3/h
Safety equipment according to CE conformity
Incl. operating manual
Transport dimensions approx. 2100 x 1605 x 1950 mm LWH
Weight approx. 850 kg
