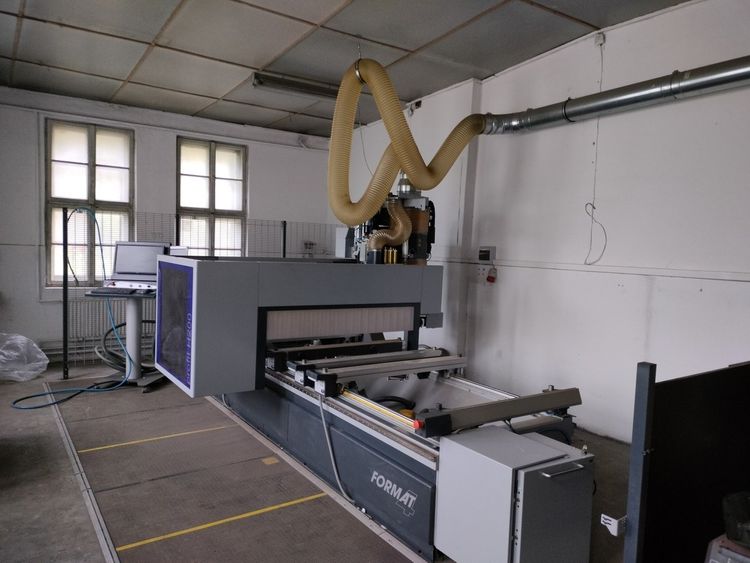

Felder, Format4 Profit H200 13.33 4 axis

CNC working center
New machine (was only use in a school for demonstration purposes)

Number of Axes: 4
X-axis Travel: 4000 mm
Y-axis Travel: 1670 mm
Z-axis Travel: 500 mm

Technical Specification
Spindle Power: 12 kW
Spindle Speed: 24000 RPM
Additional Information

Working field (max panel size):
X: 3300 mm
Y: 1280 mm
Z clearance: 250 mm

Spindle:
Tool interface: HSK F63
Rated power at: approx. 12,000 rpm
Cooling: Air-cooled
Rotation: CW / CCW
Tool magazine
Linear tool magazine (side-mounted): 12 positions
Additional linear magazine on gantry: 4 positions
Max. tool diameter: 250 mm
Max. tool length: 300 mm

Drilling unit
Model: DH 24 6H 2S
Vertical spindles: 18 (12 in X, 6 in Y)
Horizontal spindles: 6 (4 in X, 2 in Y)
Max. drill length: 70 mm
Max. tool diameter: 10 mm

Grooving saws: 2 (X and Y)
Max. saw diameter: 120 mm
Max. speed: 6,000 rpm

Vacuum table
6 consoles (instead of 4)
Dual-circuit vacuum system
Vacuum cups height: 100 mm

Pneumatic console locking
Adjustable side stops (Y-axis)
Axis system
X-axis: Rack and pinion drive
Y/Z-axis: Ball screw drive
Linear guideways on all axes
Central automatic lubrication
Control and software
CNC control with CAD/CAM software
3D simulation preview
DXF import capability
Parametric programming
Remote service package (internet-ready)
