Format4 H10
Ref :
2788163-15-AW
Condition :
Used
Manufacturer :
Format4
Model :
H10
Nb Of Axis :
-
Year(s) :
2012
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

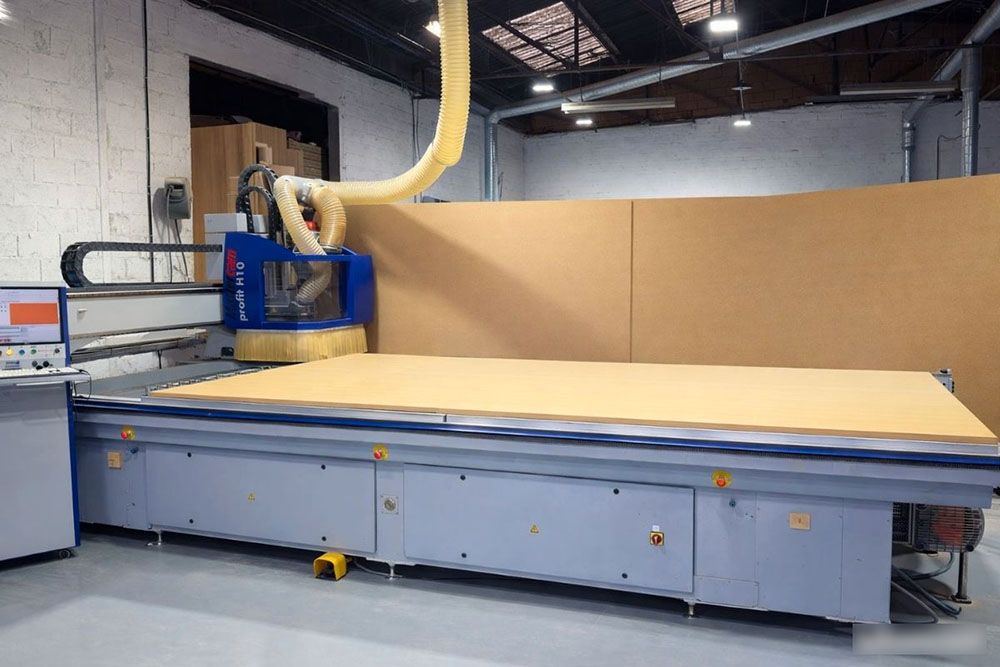

CNC machining center
The machine is in good working order and has just been serviced by Felder (invoice available).
- Technical Specifications:
Machining capacity: Approx. 4200 mm x 2100 mm, ideal for large panel formats.
Z-axis machining: 100 mm.
- "Fivemotion" unit: Digitally tiltable head.
- Spindle: 10 kW with automatic tool changer, Spindle speed: Up to 24,000 rpm
Tool clamping: HSK 63F

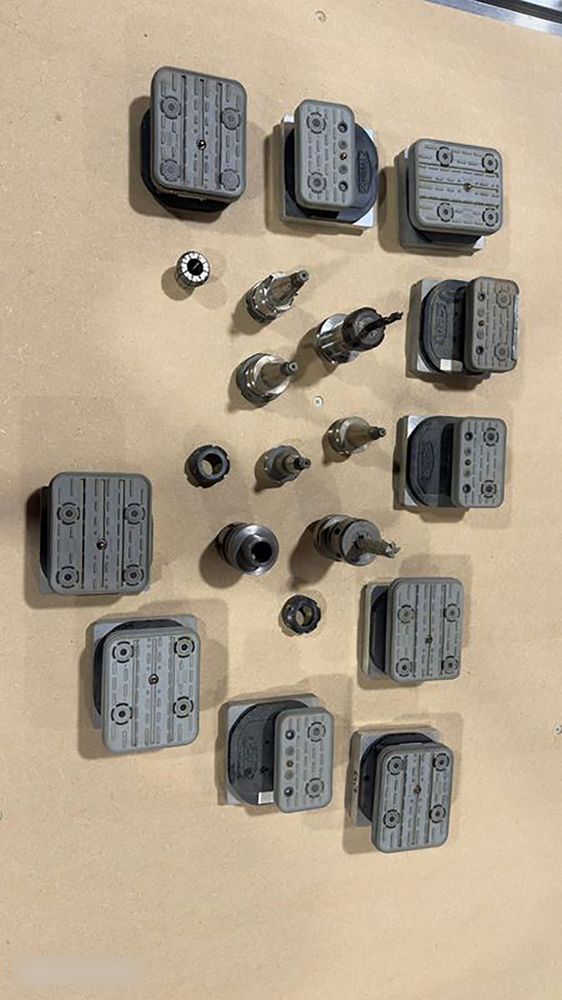

- 3 tool holders for a total of 36 tool positions, including 2 with a 300mm diameter
- Vacuum table:
Equipped with 2 dry rotary vane vacuum pumps, each with a capacity of 250 m³/h.
Recently serviced by the manufacturer, no additional costs required.
Ideal for joinery, woodworking, and converting panels into nesting boxes.
