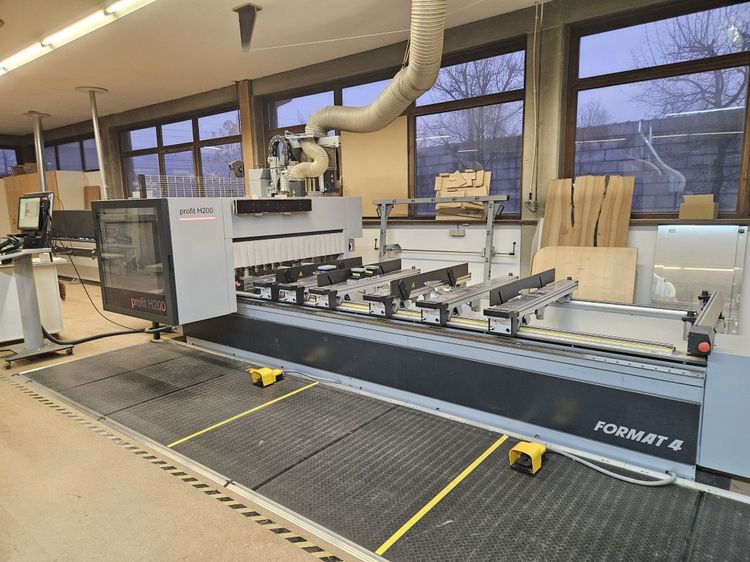

CNC machining center
Technical data:
Automatic central lubrication

Machining range:
Axis travel
X = 4000 mm
Y = 1670 mm
Z = 500 mm

Working area:
X = 3300 mm
Y = 1280 mm
Z = 250 mm Clearance height from console level depending on clamping system

Operating terminal on left side of machine
Hand terminal for controlling the axis speed, including emergency stop switch

Woodflash machine software
Consisting of
- CNC board
- Tool database
- Program editor

Positioning display for the workpiece support and vacuum suction cup
Vacuum connection for template milling work on the left side of the machine: Connection diameter: 12 mm
1 vacuum pump with a total suction power of 90 m3/h 50 Hz or 108 m3/h / 60 Hz

Milling spindle 12 kW (S6) HSK F63
12 kW (S6)
Full rated power at approx. 12000 rpm
Speed 1000 - 24000 rpm
Air-cooled
C-axe 0-360° for miiling spindle

12-station linear tool changer on the left side of the machine stand, including a pickup space for aggregates
Max. tool diameter 250 mm
Max. tool length 240 mm

Drill head DH 16 4H 2S
12 vertical spindles
7 spindles in the X direction and 5 spindles in the Y direction

4 horizontal spindles
2 spindles in the X direction and 2 spindles in the Y direction
Pre-stroke = 70 mm
Drilling length = 70 mm
Shank D = 10 mm

2 groove saws, one each in the X and Y directions
Max. saw blade diameter 120 mm
Max. blade thickness 5 mm
Max. speed continuously variable 7500 rpm
Safety system with light barrier on the front
