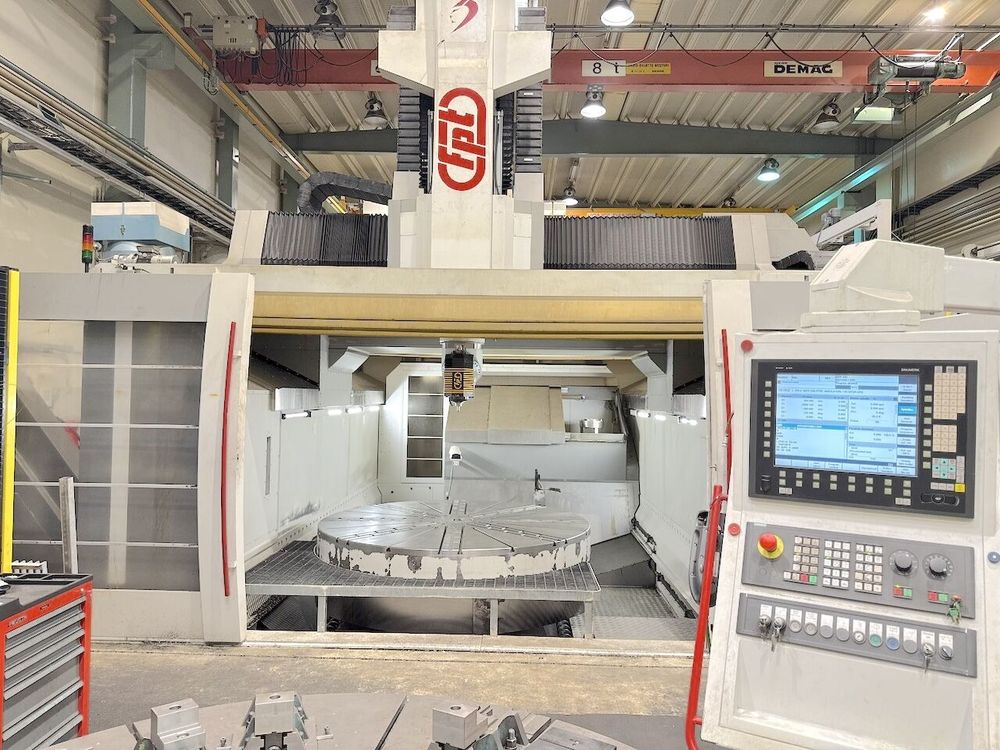

FPT DINOMAX2 6 Axis

Travel X: 4000 mm
Travel Y: 1300 mm
Travel Z: 2700 mm
Rotary Table Diameter: 2500 mm
Control: Siemens 840DHS (DSL)
AUTOCAL Software
Dynamic RTCP Software
Tool Life Management Software
Rigid Tapping
Linear Motor Axes
M&H Touch Probe
Laser Tool Presetter with Tool Breakage and Tool Length/Radius Measurement
Fast Clamping System for Manual Pallet Change
Additional 2500 mm 6-Jaw Chuck
3 Internal Live Cameras
Full Cover with Folding Roof
Chip Conveyor Parallel to Y Axis
Mist Extractor Preparation
Column Distance: 3700 mm
Spindle Nose to Table Distance: 1620 / 1859 / 1749 / 1979 mm
Rapid Traverse X: 50 m/min
Rapid Traverse Y: 50 m/min
Rapid Traverse Z: 50 m/min
Rapid Traverse B: 80 rpm
Axis Acceleration: 4 m/sec2
ATC Capacity: 120 Positions
Max. Tool Diameter: 75 mm
Max. Tool Diameter with Free Adjacent Space: 125 mm
Max. Tool Length: 80 × 300 mm / 40 × 500 mm
Max. Tool Weight: 10 kg
Tool Taper: HSK63 / Capto C6
Working Table Diameter: 2500 mm
Table Capacity: 8000 kg
Table Speed: 80 rpm
B Axis Accuracy: 0.0001°
Table Power: 70 kW
Head Pickup Station: 3 Positions
Head Type: TULCE22
Spindle Taper: HSK63
A Axis: ±185°
C Axis: ±185°
Max. Torque: 128 Nm
Max. Speed: 22000 rpm
Max. Power: 33 kW
Coolant Through Spindle: 40 Bar
Undercutting Angle: 10°
Direct Drive Full 5-Axis Indexing
Head Type: TVS10
Max. Torque: 210 Nm
Max. Speed: 10000 rpm
Max. Power: 44 kW
Head Type: T2C6 Turning Tool Holder
Spindle Taper: 2 × Capto C6 Horizontal / 1 × Capto C8 Vertical
Total Power Supply: 150 kW
Machine Weight: Approx. 70000 kg
Floor Space: 7500 × 6975 × 5180 mm
High Pressure Coolant: 40 Bar CTS / 4 Bar External
Coolant Flow Rate: 28 l/min
Coolant Tank Capacity: 1200 l
