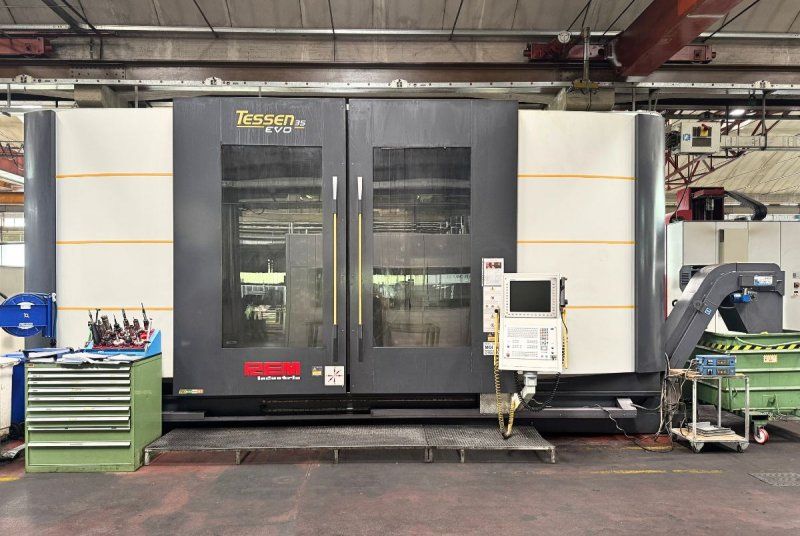

FPT TESSEN EVO35 5 Axis

Longitudinal travel: 3500 mm
Transversal travel: 1100 mm
Vertical travel: 1500 mm
Rapid feeds L-T-V: 40 m/min
A-axis automatic
B-axis automatic
Millisecond positioning
Control unit: Heidenhain TNC 640
High pressure coolant: 40 Bar
Spindle taper: ISO 50
Spindle speed: 5000 rpm
Spindle motor power: 34 kW
Tool magazine type: Chain-type
Tool magazine positions: 40
Overall dimensions: 8760 x 4950 x 3780 mm
Machine weight: 35020 kg
Swarf conveyor
Laser tool setter
Touch probe
Portable handwheel
