FPT M-ARX M100 Gantry Milling Machine 4000 rpm
EUROPE (Western and Northern)

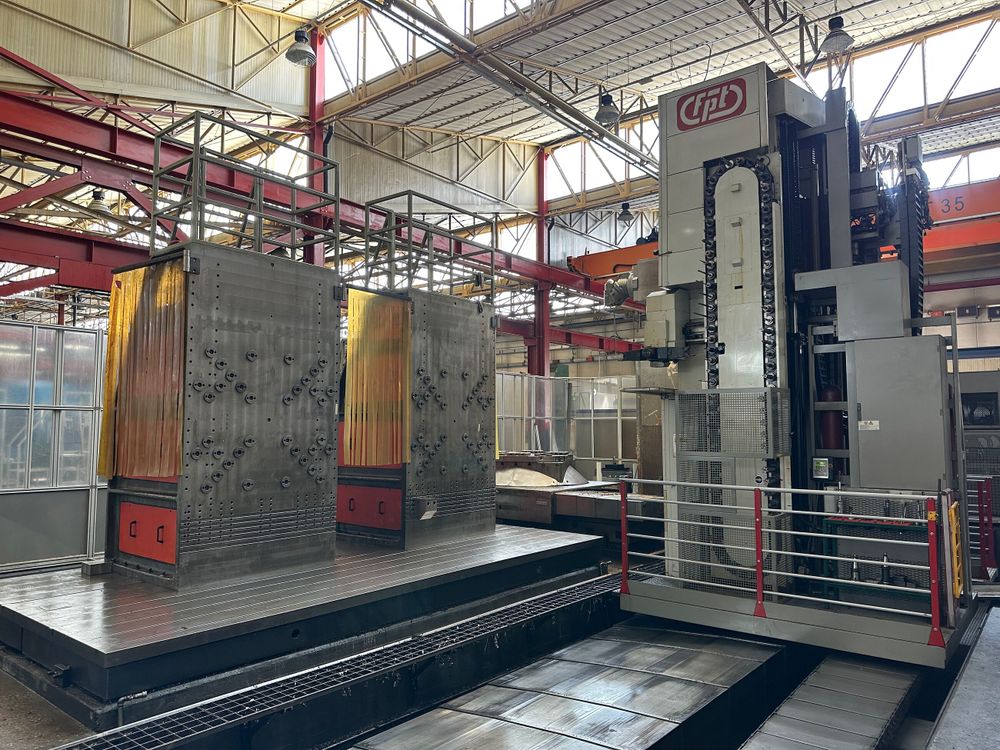

FPT M-ARX M100 Gantry Milling Machine
X-axis travel: 10000 mm
Y-axis travel: 4000 mm
Z-axis travel: 1250 mm
Table size: 1500×1500 mm
Table load capacity: 30000 kg
Spindle power: 68 kW
Spindle speed: 4000 rpm
Spindle taper: ISO50
Tool capacity: 80 tools
Control: Heidenhain iTNC530
Positioning resolution: 0.001°
Coolant pressure: 40 bar
Total installed power: 116 kW
Machine dimensions: 16329×10000×6570 mm
Hydrostatic axis support
Optical measurement system
3-position tool changer
Renishaw workpiece probe
BLUM tool presetter
High pressure coolant
Chip conveyor
Perimeter enclosure
Mobile operator platform
CE certified
Electrical diagrams included
Operation manuals included
