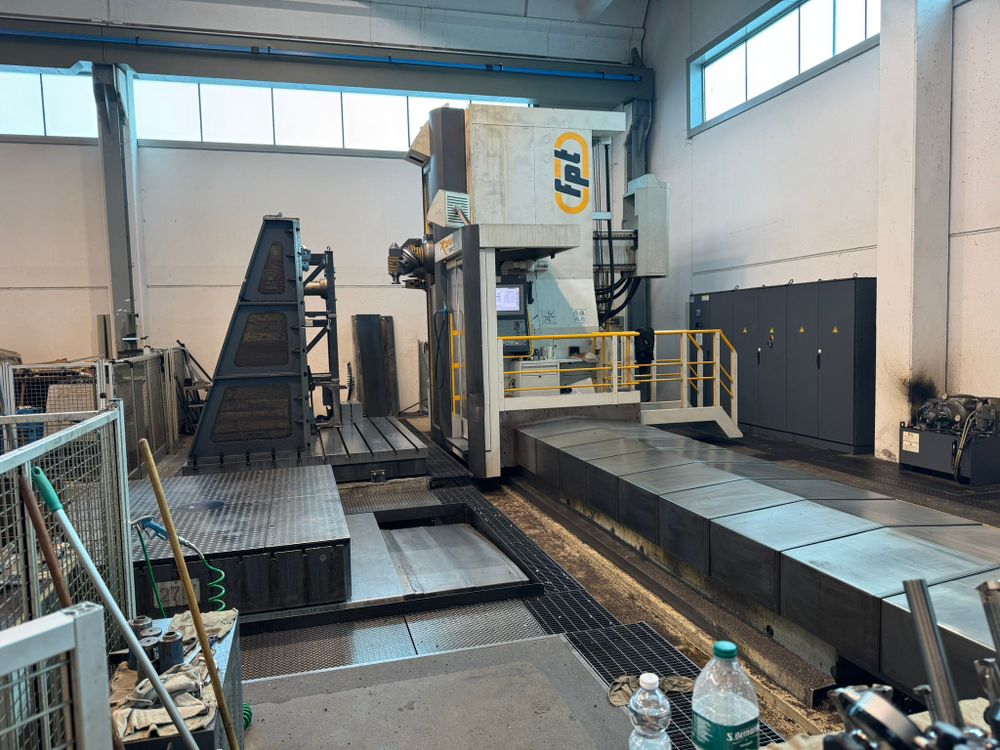

FPT RONIN EVO 5,000 RPM

Table Dimensions: 2,000 × 2,500 mm
Table Load Capacity: 30,000 kg
Longitudinal X-Travel: 6,000 mm
Cross Y-Travel: 1,500 mm
Vertical Z-Travel: 2,500 mm
Spindle Motor Power (Mechanical Heads): 42 kW
Spindle Torque: 1,180 Nm
Spindle Speed: 5,000 RPM
Automatic Head Clamping System
Universal Head with 37 kW, thousandth-degree positioning
Number of Mechanical Spindles: 2 (ISO 50)
Spindle Extension Diameter: 200 mm
Spindle Extension Length: 400 mm
Rigid Tapping for Mechanical Heads ×2
Rotary-Translating Table
Chain-Type Tool Magazine: 60 Tools
Laser Tool Integrity Probe
Workpiece Alignment Measuring Probe
Coolant System
Chip Conveyor
Anchoring and Leveling Equipment for X Axis
Vibration Detection Sensor
Double Cradle for Loading/Unloading Two Milling Heads with Dedicated Software
AUTOCAL Software for Automatic Calibration
Worktable Height: 300 mm
Spindle Motor for Mechanical Heads: 37 kW
