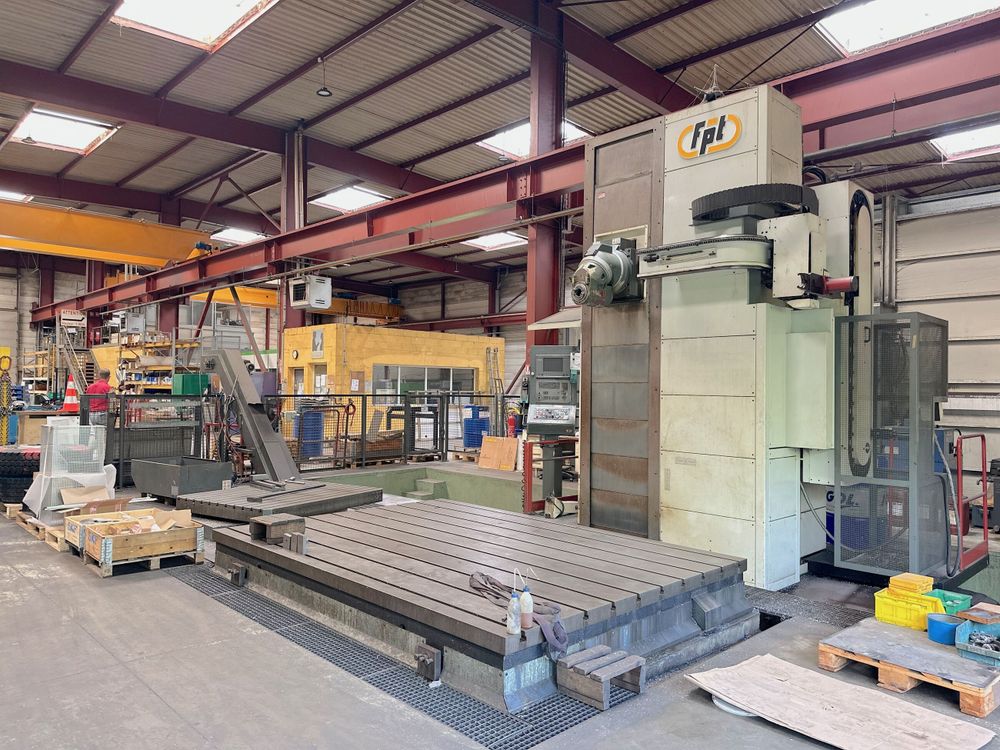

FPT SIRIO M60 125 mm 4000 Rpm

FPT SIRIO M60

Capacity6000x2590x1200 mm
Longitudinal (X)6000 mm
Vertical (Y)2000 mm
Cross RAM (Z)1200 mm

CNC
DrivesSIMENS SINUMERIK
CNCHeidenhain TNC430

SPINDLE
Spindle power28/35 Kw
Rotating speed187-4000 Rpm
Torque1337 Nm
TaperISO50 DIN69871
FEEDSRapid X
15 m/minRapid Y
15 m/minRapid Z
15 m/minATC
Positions40
Max tool diameter125 mm
Max diam with free adiacent space230 mm
Max tool lenght400 mm
Max tool weight20 Kg

FIXING TABLE
Floorspace (LxWxH)3500x2500x300 mm
Capacity15.000 Kg/mq

TABLE 1
Surface1750x1550 (ø2240) mm
Accuracy (B axis)0,001 °
Capacity9000 Kg

HEAD 1
TypeTU144G
Spindle taperBT50
A axis144x2,5 °
C axis144x2,5 °
Max torque1400 Nm
Max speed4000 Rpm
Max power28 Kw
CoolantCTS 16 Bar

EXTRA
Total power supply
56,9 Kw
Machine total weight
27000 Kg
Floor space
10800x8500x4300 mm
High Pressure
CTS 16 Bar
Filtration unit
tank 1200lt - filtrer 10 µm
Chiller
SI
Workpiece touch probe
Heidenhain TT130
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Chip conveyor
6000 mm
