FR9 with H80

Automatic circular edger make EWD with automatic feed
Technical Specifications and Performance Factors:
Board Lengths: 1.0 – 6.0 mm
Board Widths: 60 – 700 mm
Cutting Heights: 18 – 100 mm
Performance: Max. 24 cycles/min. for 4 m board length
Main Drive: 55 kW
Feed Rate: V = 30-250 m/min.
Description: Axis adjustment is achieved via gauge block cylinders.

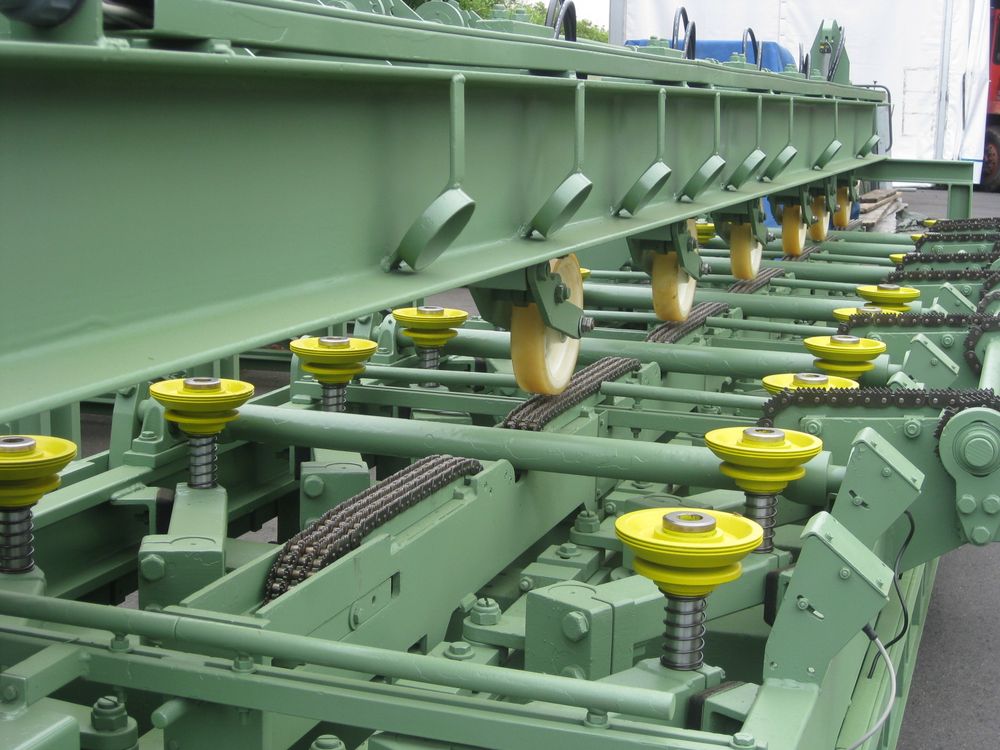

The machine is offered including mechanization consisting of a continuous cross-cutting unit,
infeed machine, H 80 storage cross conveyor, alignment table, and splinter separator.
