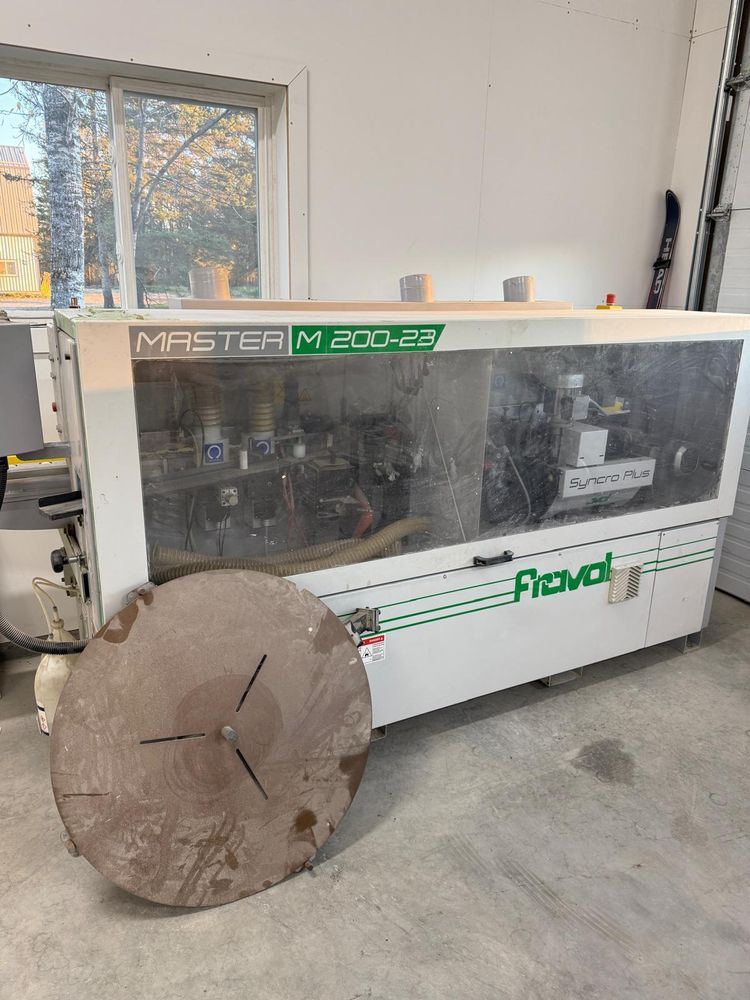

Fravol M200-23

Edgebander
STANDARD FEATURES:
Color touch screen
Revolving longitudinal coil holder
1.1+0.75 kw Ø 60 pre-milling unit (RT/F)
Loading device
1kg Teflon-coated glue tank
Eco-mode system
Pressure rollers for straight edges
3mm shear
Rough trimming / bevel trimming unit (RF-F)
Corner rounding unit (Syncro Plus)
Soundproof booth with LED interior lighting

460V 60HZ 3PH,
5.9KW 22.8A
PLC TOUCH CONTROL
QUICK HEATING - START UP IN 6-8 MINUTES
GLUE POT CAPACITY: 1 KG
PANEL THICKNESS STANDARD 10 to 45 mm
PANEL WIDTH MINIMUM 80 mm
PANEL LENGTH Min 120 mm
EDGE WIDTH 12 to 48 mm
EDGE THICKNESS 0.4 to 6mm with syncro unit max. 3 mm
FEED 7m / minute
WEIGHT 1000KG
(MACHINE DIM.) approx. 10.3' X 3' X 5'
