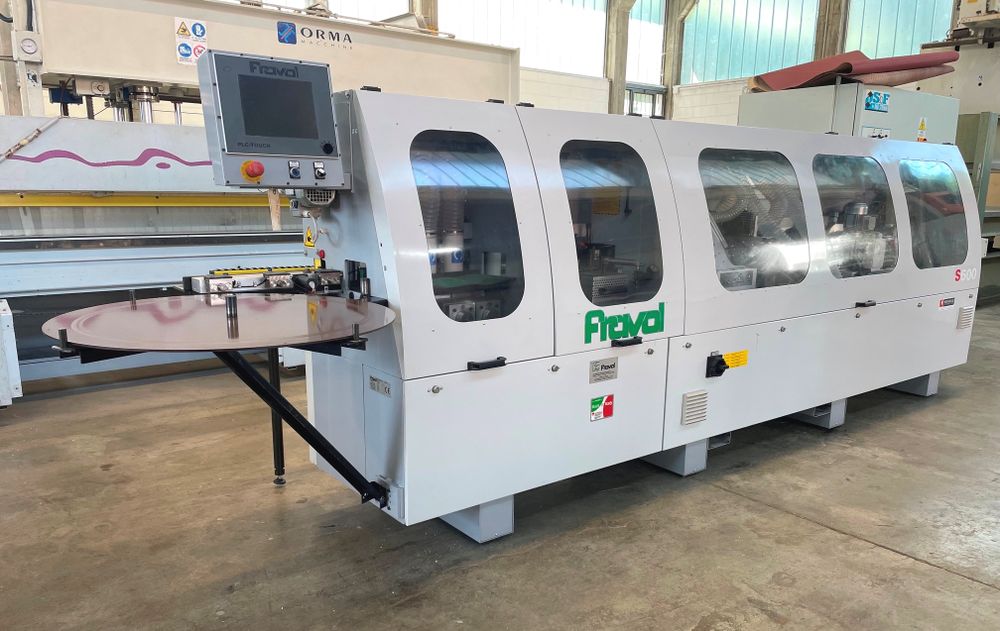

Fravol Smart S600

Used edgebander
panel thickness mm. 10-50
minimum panel width 60 mm
minimum panel length 140 mm
edge thickness from 0,4 to 8 mm.
edge height mm. 12-63
Minimum length of edges in strips or solid wood 180 mm
feed speed 12,5 m/min
compressed air consumption max 16 lt/min at 6 bar
6,0′ color touch screen microprocessor control
grinding group with controlled axis input guide
gluing group
warehouse of edges in rolls and strips
2-motor end mill with 2 positions 0°-15° programmable
overlapping or flat trimmer
2-radius plane controlled axis edge trimmer
rounding unit R2
radius 2 edge scraper
liquid
glue scraper unit
brushes
dryer unit
installed power KW 15,9
length mm. 5300
weight kg. 1770
