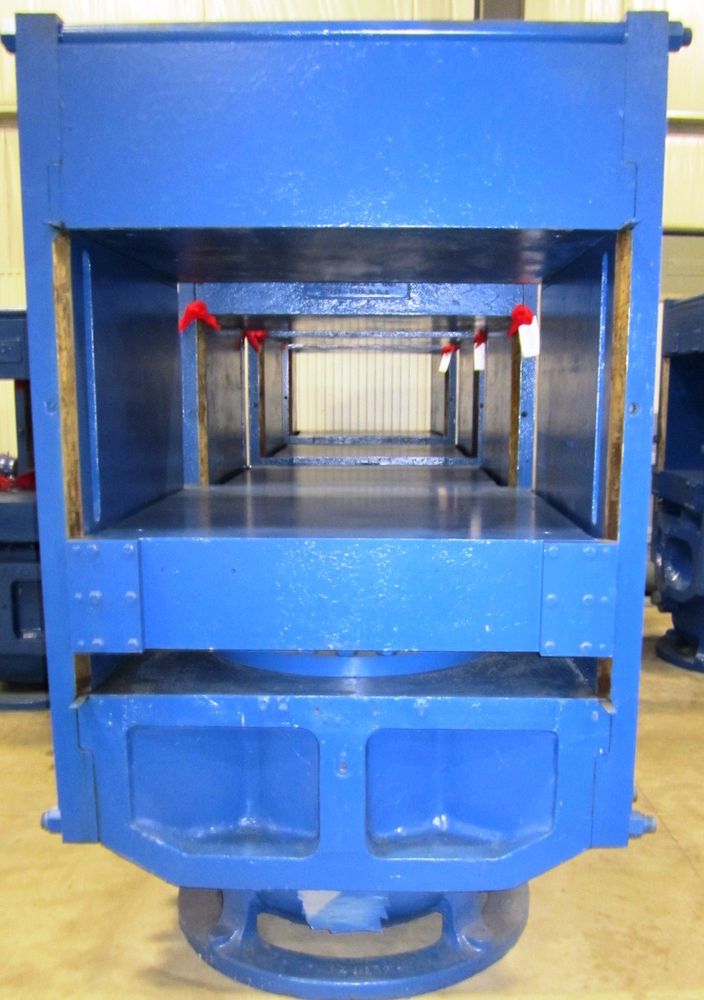

French Oil 42″x42″ Press

1250 Ton @ 2,450 PSI
Very heavy-duty design & construction
Slab sides
6” thick sides with 2 1⁄2” side windows
36′′ dia. ram
18′′-20” max. stroke
36 1/2 ′′ daylight without platens
Moving bolster size: 45” l-r x 42” f-b
NEW/REBUILT bolster guides on all four beveled corners
45 3/4′′ working height (from the ground to top of moving bolster)
46 1/4′′ distance l-r between sides.
Press has been completely disassembled and sandblasted.
Ram, ram housing, and gland ring REBUILT TO NEW CLEARANCES.
Primed and painted with anticorrosive BLUE paint.
NEW u-cup seal will be installed.
Overall dimensions: 60′′ l-r x 50′′ f-b x 107′′ H (bare press)
Offered rebuilt and guaranteed.
OPTIONAL # 1: NEW 200-gallon hydraulic unit. IN STOCK!
OPTIONAL # 2: NEW electrical/control Panel with Allen Bradley PLC and color HMI (operator interface) programmed for
complete cycling: closing, pre-heating (dwelling),
degassing (bumping), curing (clamping), opening, etc.
OPTIONAL # 3: NEW electric, steam or oil heating platens and
NEW platen insulation. IN STOCK!
Complete system is offered fully rebuilt and guaranteed.
