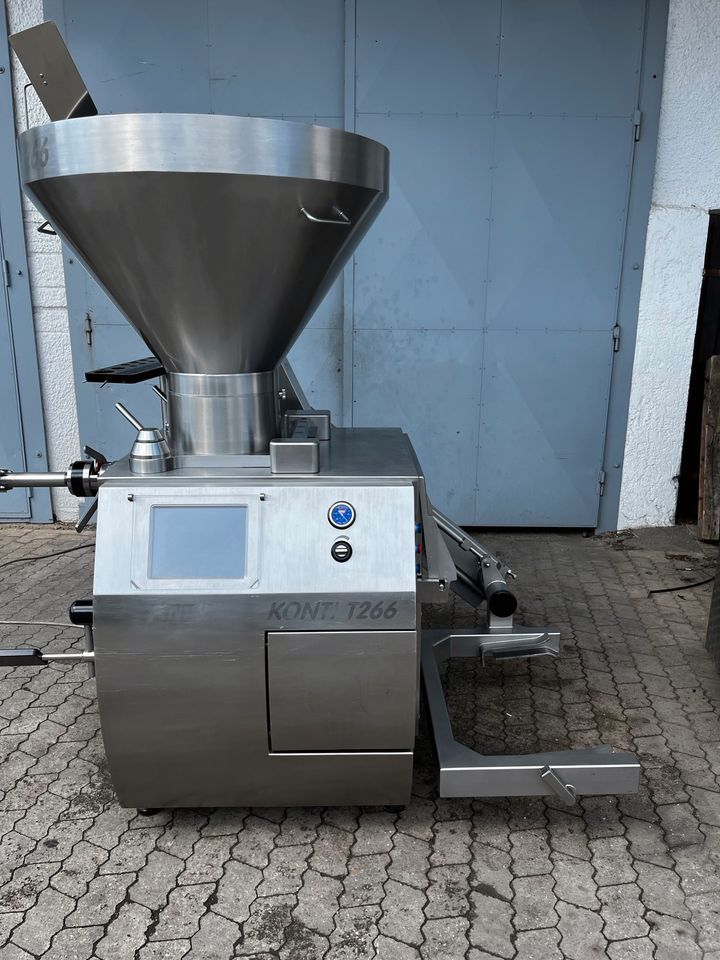

Frey F 266, Vacuum stuffer

Filling capacity up to approx. 11,000 kg/h
Machine casing (inside and outside) and filling hopper completely made of stainless steel
Filling hopper approximately 300 liters
filling pressure up to approx. 35 bar
integrated vacuum system and water separator
electrically locked step
Maximum total connection value 16.5 kW
three-phase current 400 volts, 50 Hz
including standard accessories:
FREY Touch Control TC 733 industrial PC control
12-inch TFT color display (800 x 600 pixels)
intuitive operation by touching the screen (touch operation)
motion control
self-explanatory function CAN-Bus for high-speed communication with accessories
Ethernet interface USB interface Index and display of the product name in the program
Portioning range 5 – 100,000 g (5 – 999 g in 0.1 g increments)
portioning speed max. 1120 portions/min.
Infinitely selectable portion pause time and duration
Flow measurement, parts counter, parts number shutdown
Suction of dough and addition of portions
error indication
Memory for 200 filling programs, including cooked sausage programs
Electronic pulse control for clipping machine with integrated vacuum system and water separator Digitally controlled vacuum system
21 m³ vacuum pump
The F-LINE F266 SA type has a high-speed servo turning.
