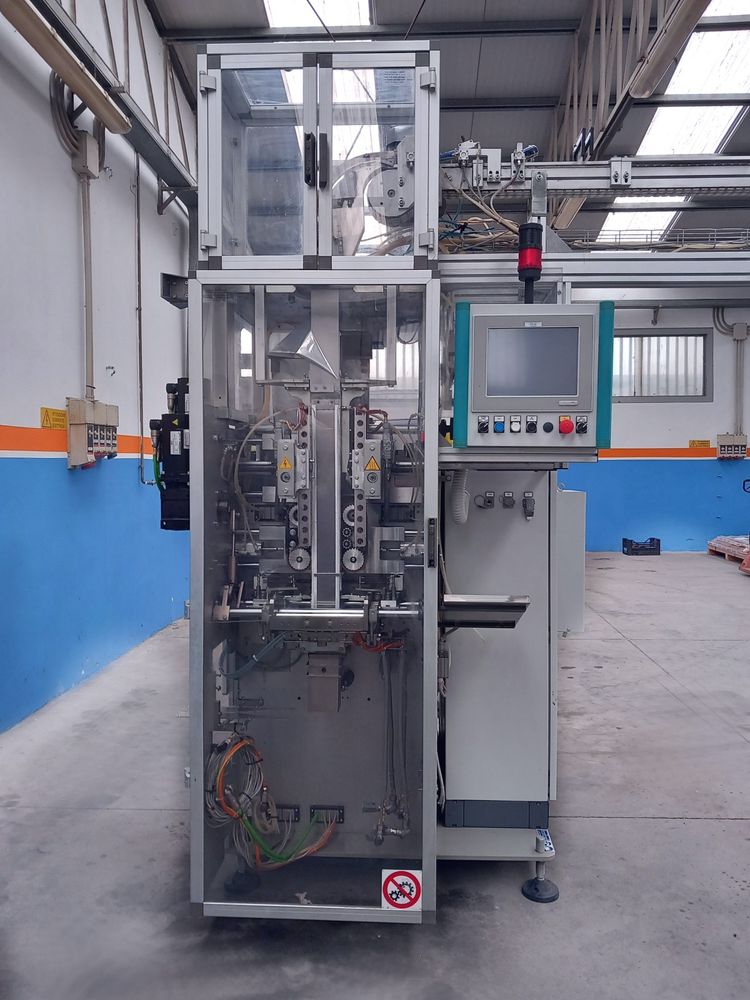

ICA CSV40 NTS VERTICAL PACKAGING MACHINE
Ref :
2793623-5-MT
Condition :
Used
Manufacturer :
ICA
Model :
CSV40 NTS VERTICAL PACKAGING MACHINE
Year(s) :
2014
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Voltage: 400 Volt
Frequency: 50 Hz
Power: Kw
Phases: 3
Max pressure: 6 bar
Air consumption: 600 NI/min
Dimensions (LxWxH): 4900 x 2550 x 2700 h mm
Weight: 1500 kg
Max output: 85 packages/min. (Depending on feeding system, package type, product, and packaging material.)
Current bag dimensions handled: mm 9 x 9
Inline scale capacity min-max: 50 – 5500 g
Possible packages: STRAIGHT FIN AND PAKET min 60x40x100 h | max 220x130x570 h mm, PILLOW BAG min 75×70 h | max 275×570 h mm, GUSSETED BAG min 60x40x100 h | max 220x130x570 h mm
