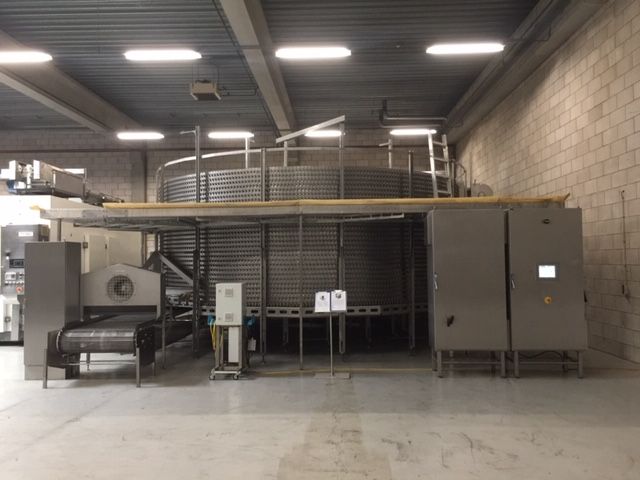

Frigoscandia JBT GYRoCOMPACT M10/3+1-08-30-27+9-NW-CR-SD Spiral Freezer

Cooling capacity: 390 kW (~115 tons)
Refrigerant type: CO2 / R717 Ammonia
Voltage: 400 V
Absorbed power: 99 kW
Production freezing capacity: Approx. 3000 kg/h (product dependent)
Maximum possible capacity: Up to 4000 kg/h with additional cooling tier
Operating hours: 37000 h
Spiral belt width gross/net: 1070 mm / 1040 mm
Maximum product height: 65 mm
Number of tiers: 30
Total belt surface: 525 m²
Belt length: 615 m
Rotation direction: Clockwise
Infeed/outfeed configuration: North/West (configurable)
Evaporator blocks: 4 galvanized evaporators
Maximum evaporator pressure: 75 bar
Evaporator block volume: 513 L each
Evaporator operating mode: 3 rotating + 1 defrost sequence
CIP cleaning system: Included
Control system: Siemens S7 PLC Simatic touchscreen
Frequency controllers: Included
Switch cabinet material: Stainless steel
Condition: Super good maintained condition
Nitrogen pressure test for evaporators: Included
Housing and isolated floor: Not included (optional)
Machine dimensions (LxWxH): 1400 x 800 x 480 cm
Main components guarantee: 3 months after sale (if serviced)
Operating mode: Freezing dough products from +25°C to -18°C core temperature
Documentation: Original manuals, pressure certificates, AutoCAD drawings
