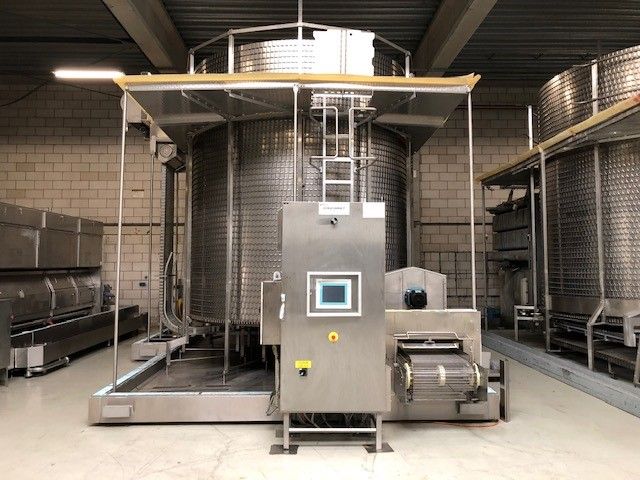

Frigoscandia, JBT GYRoCOMPACT M6-08-48-14-NE-CCR

Cooling capacity: 290 kW / 85 tons
Refrigerant type: R717 / Ammonia
Voltage: 400 V
Absorbed power: 33 kW
Infeed / outfeed: North/East
Direction of belt rotation: Counter-clockwise
Gross belt width: 660 mm
Net belt width: 615 mm
Maximum product height: 65 mm
Number of tiers: 48
Belt surface total: 273.6 m²
Evaporator: Goedhart/GEA stainless steel coil Frigoscandia14
Evaporator fans: 2 high pressure fans
Switchboard cabinet: Stainless steel, Siemens S7 1200, HMI touchscreen
LVS system/tank: Stainless steel, low volume ammonia system
Isolated floor: Divided in three pieces with stainless covering
Freeze installation: Ammonia Frigo-pack, 20 ft container
Screw package: 1 Grasso/GEA SP1-SB-3B
Screw motor: Leroy-Somer 200 kW E-motor
Control: Control box with starters and Siemens PLC
Eco vessel/tank: Included
Condenser: Baltimore evaporating condenser type VCL 140M
Ammonia detection system: Included
Total absorbed power (spiral + plant): 233 kW
Dimensions (LxWxH cm): 640 x 460 x 600
Condition: 4555 running hours, checked and maintained, 3 months guarantee on main components
