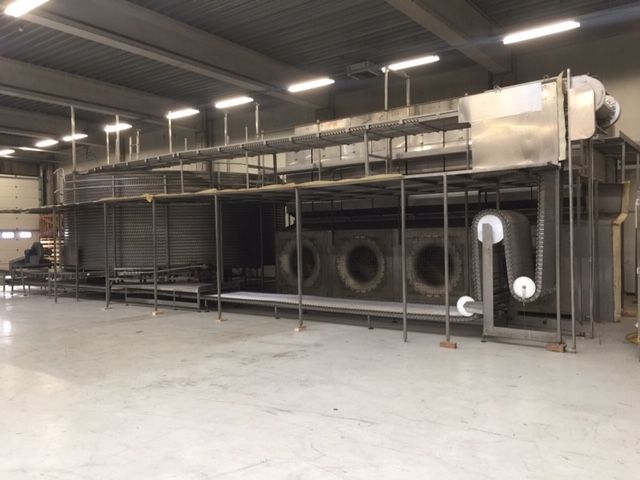

Frigoscandia, JBT Corporation Spiral Freezer GYRo COMPACT M-106-08-32-60(+20)-NS-CCR-SD-FD

Cooling capacity 850 kW (250 tons)
Production capacity approx. 5000 kg/h (potato products, +60°C to -18°C core)
Maximum capacity up to 7000 kg/h (depending on product and inlet temperature)
Refrigerant R717 ammonia
Supply voltage 400 V
Absorbed power 106 kW
Infeed/outfeed direction North/South
Belt rotation direction counter clockwise
Gross belt width 1060 mm
Net belt width 1004 mm
Maximum product height 65 mm
Number of tiers 31
Total belt surface 542.5 m²
Belt length 635.5 m
8 galvanized freezing evaporators
Evaporator volume 490 L each
Evaporator surface 8400 m²
Hot gas defrost stations
Evaporator ventilators 4 pcs
PLC control Siemens S7
Touchscreen interface Simatic
CIP cleaning system JBT Corporation CIP system
Year of manufacture 2004
Dimensions (L×W×H) 8300 × 1624 × 5750 mm
Spiral freezer in excellent maintained condition
Delivered without panels/housing (optional)
Mechanical/electrical inspection after sale
Gearboxes supplied with new oil
Evaporator blocks tested with nitrogen pressure
3 months guarantee on main components
