Froriep, Schiess CNC SIEMENS 840 D sl Max. 400 U/min 16 DSC 140 2 Axis CNC Vertical Turret Lathe - Single Column

Ref : 1183345-3
Condition : Used
Manufacturer : Froriep, Schiess
Controller : CNC SIEMENS 840 D sl
Spindle Speed : Max. 400 U/min
Model : 16 DSC 140
Nb Of Axis : 2 Axis
Type : CNC Vertical Turret Lathe - Single Column
Year(s) : 1994
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 02 Sep. 2014

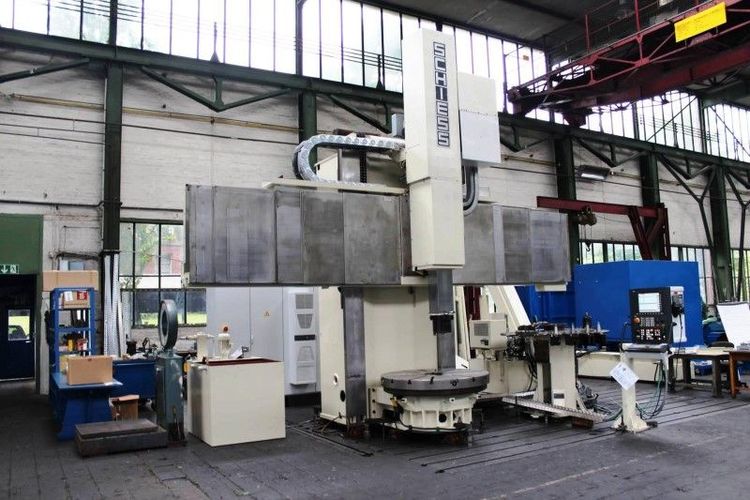

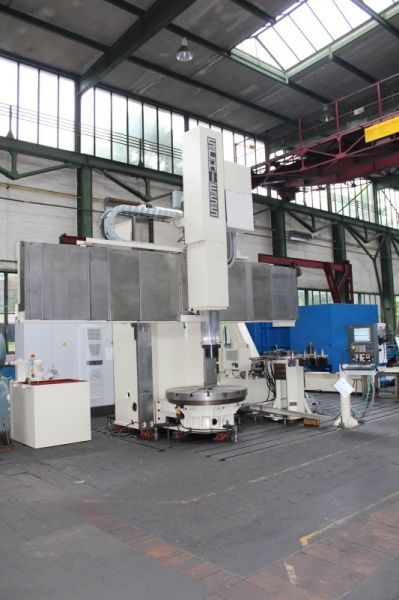

SCHIESS-FRORIEP 16 DSC 140
Vertical Turret Lathe - Single Column
Year of construction 1994/2012

faceplate ø 1400 mm
swing ø 1600 mm
turning height 1400 mm
faceplate turning speed range 4-400 U/min
workpiece weight 8000 kg
cross rail adjustment - vertical 800 mm
ram head dimension 250x210 mm
feed speeds 0,1-2000 mm/min
rapid travel range 6 m/min
main drive 56 kW
total power requirement 90 kW
weight of the machine ca. 22 t
dimensions of the machine ca. 7,0x5,0x6,2 m

with new CNC SIEMENS 840 D sl
automatic toolchanger based on the floor for 16 x ISO 50 tool-pockets and 2 head-pockets
hydrostatic guideways for X and Z-axes
C-axis with driven toolings 16 - 1600 rpm. 22,5 kW, splash guarding, coolant supply and chip conveyor
