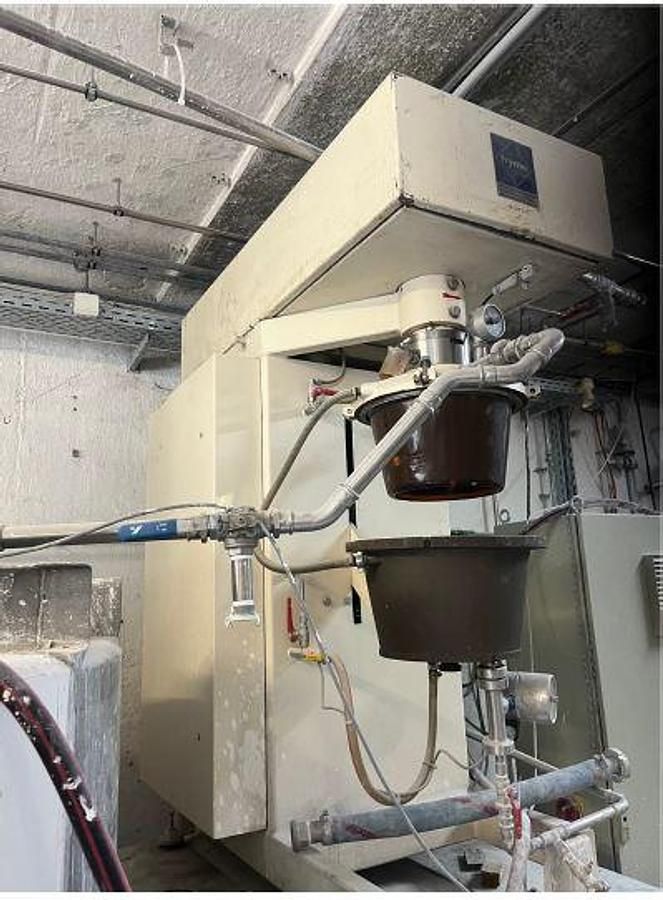

Fryma Koruma MS-32 Ball Mill
EUROPE (Western and Northern)
Volume 4,1 l
operating pressure product space max. 2.5 bar
IP protection class IP 54
Ex protection class Eex e II t3
drive power 23 kW
mass about 550 kg
Effective grinding chamber volume 4.1 l rotor diameter
effective grinding chamber volume: 4.1 l
rotor diameter: 334 mm
operating pressure: Product chamber max. 2.5 bar
cooling chambers max. 2.0 bar
all product-contacting parts made of polyurethane (PU)
IP protection class: IP 54
Ex protection class: Eex e II t3
drive: power 23 kW
speed 1475 rpm
peripheral speed approx. 14 m/s
single-acting mechanical seal
operating instructions and drawings available
A feed pump and control cabinet with all relevant safety shut-off devices can be offered upon request.
also available upon request:
remanufactured rotors and stators in PU design
& various spare parts
dimensions: 1,650 x 850 x 1,870 mm high
weight: approx. 550 kg
