FUJICAR JAPAN cap. 5000TON plate 50mm x16000

FUJICAR JAPAN cap. 5000TON plate 50mm x16000
Year 1971

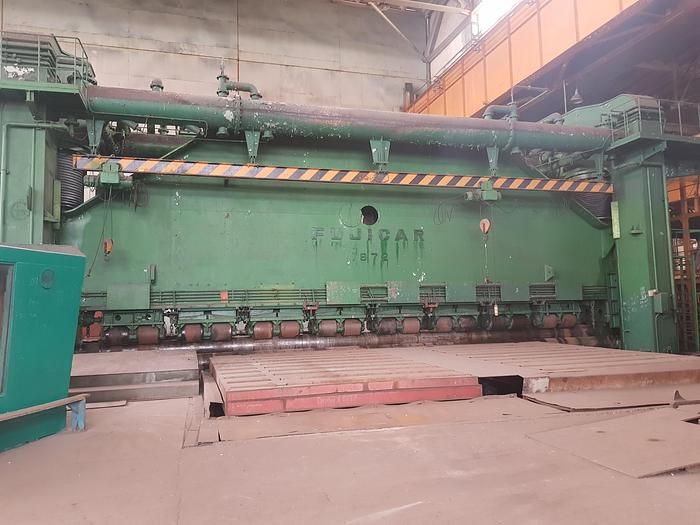

Tree roll plate bending and edges bending (curving) machine
for shipbuilding with bending press cap. 5000TON for plate 50mm x16000
Capacity the steel plate to be bent are up to 50 kg/mm2 (32 ton/in2)
in yield stress and up to 90 kg/mm2 in tensile strength

1. Bending
• Min. 5 mm thickness x 16 000 mm width
• Min. bending radius 500 mm
• Max. 50 mm thickness x 16 000 mm width
Distance between center and bottom rolls of 900 mm
• Max. 55 mm thickness x 16 000 mm width
Distance between center and bottom rolls
of 1100mm

2. Flexing (flanging)
• 90˚ Mold Flexing
• Max. 50 mm thickness x 16 000 mm width
Distance between center and bottom rolls
of 900 mm

3. Roll Flexing
• Max. 55 mm thickness x 16 E431468 000 mm width
at bending radius 170 mm and flexing span 950mm

Specifications
• Press capacity 5000 tons (2500 tons x 2)
• Roll’s diameter and barrel length (work roll)
TOP roll 520 x 16300 mm – 1
BOTTOM rolls 500 x 16300 mm – 2
• Bending (rolling) speed
4 ᶓ 8 m/min Approx.
