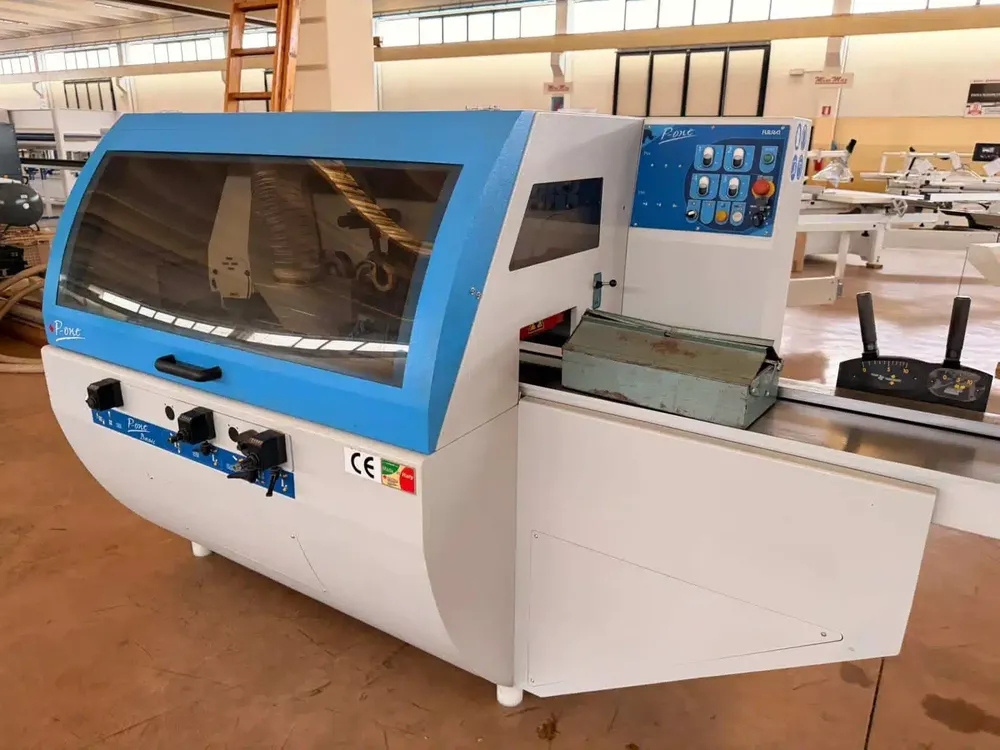

Futura p-one 23/4

Monoblock steel base adequately ribbed – 2300 mm long ground tubular steel infeed table
Transmission via poly-v belts on all tool shafts, guaranteeing maximum efficiency of the engine power
Independent motor unit on each work unit
Upper crosspiece equipped with motorized vertical movement,
with drive rollers and pressure rollers adjustable simultaneously with the upper shaft for greater speed and ease of set-up
Feed system via universal joints, double rear chain and inverter speed variator
Drive via 4 toothed rollers and 1 upper rubber roller at the output
Air curtain on the work table to facilitate the sliding of the piece
Left vertical shaft adjustable simultaneously with the pressure group and output guide, for greater speed and ease of set-up
Pre-straightening system on the right side via a shaving cutter (on request) mounted on the planer shaft
0.1 mm precision decimal reading of the 2nd-3rd-4th shaft movements
Quick adjustment system tools on the 2nd-3rd and 4th group
Possibility of mounting cutters on the 2nd-3rd-4th spindle up to a maximum diameter of 180mm and a minimum diameter of 110mm (maximum profiling diameter 160mm)
Radial adjustment of the 2nd-3rd-4th spindle by 35mm via controls on the front of the machine
Vertical travel of the spindle moulder at 40mm below the work table with cutters with a maximum diameter of 160mm
Pneumatic pre-planer roller with exclusion from the control panel
Pneumatic pressure on the feed groups
Manual lubrication on the work table
Direct start of the motors with illuminated buttons from the control panel
Soundproofed protection cabin complete with safety microswitch
Control panel with magnetothermal protection
